Gaussian Random Walk Model for A/B Clustering

Implementing dependency between bins with a Gaussian Random Walk through a sigmoid

This model infers A/B chromatin compartment structure from the first eigenvector (E1) of the Hi-C contact matrix using a Bayesian framework.

Here we implement dependency between bins with a Gaussian Random Walk (GRW) that is then squished through a sigmoid to obtain probabilities for compartment assignment.

Goals

To treat the eigenvector as a soft predictor in stead of deterministic assignment of compartments. Hopefully, we will salvage some variance and thus be able to obtain uncertainty estimates for compartment assignment.

Implementation: GRW on Latent Space

Imports

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import matplotlib_inline
import pymc as pm
import arviz as az
from scipy.stats import norm
from pprint import pprint

## Use a custom style for the plots
plt.style.use('smaller.mplstyle')
matplotlib_inline.backend_inline.set_matplotlib_formats('svg')
# %config InlineBackend.figure_formats = ['retina']

Load/show data

Here, we load the Hi-C contact matrix and the first eigenvector (E1) of the contact matrix. The E1 is used as a predictor for compartment assignment.

The eigendecomposition of the Hi-C matrix was performed with the workflow in the main folder (workflow.py), using the Open2C ecosystem

# Load the data
resolution = 50000

y = pd.Series(pd.read_csv(f"../data/eigs/fibroblast.eigs.{resolution}.cis.vecs.tsv", sep="\t")['E1'].values.flatten())
x = pd.Series(np.arange(0,y.shape[0])*resolution)

# Make a DataFrame object
df = pd.DataFrame({"start": x, "e1": y})
df.dropna(inplace=True)

# # TEST DF

# df = df.iloc[:200]
# df

The data are stored as pd.Series() objects, merged into a pd.DataFrame() that is not used. Maybe it would save some typing (for plots) to have the bin numbers converted into the genomic position, so that might be implemented in the future. It already is…

# Plot the data as a track (stairs for niceity)

fig, ax = plt.subplots()

x_stair = np.zeros(2*df.start.shape[0])
y_stair = np.zeros(2*df.shape[0])
x_stair[0::2] = df.start
x_stair[1::2] = df.start + resolution
y_stair[0::2] = df.e1
y_stair[1::2] = df.e1


ax.fill_between(x_stair, y_stair, where=(y_stair<0), color="tab:blue", ec='None')
ax.fill_between(x_stair, y_stair, where=(y_stair>0), color="tab:red", ec='None')

ax.set_xlim(0, df["start"].max()+resolution)
ticks = np.arange(0, df["start"].max()+resolution, step=1e7, dtype=int)
ax.set_xticks(ticks)
ax.set_xticklabels((ticks/1e6).astype(int), rotation=45)
ax.set_xlabel("Genomic Position (Mbp)")
ax.set_ylabel("E1")
ax.set_title("E1");

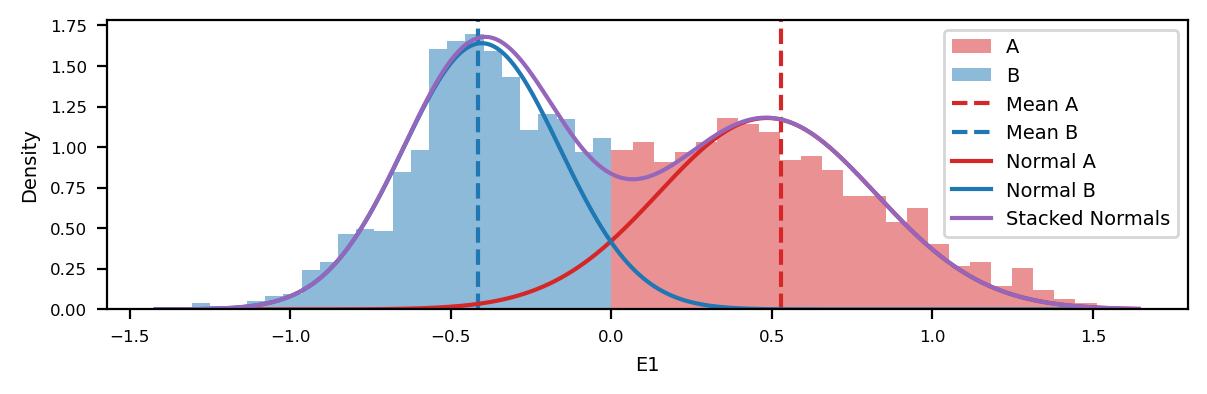

# Histogram of distribution of E1 values (A and B)

x = df["start"].values
y = df["e1"].values

f, ax = plt.subplots()

# A compartments
ax.hist(y[y>0], bins=25, color="tab:red", alpha=0.5, label="A", density=True)
# B compartments
ax.hist(y[y<0], bins=25, color="tab:blue", alpha=0.5, label="B", density=True)
# Mean values (vline)
ax.axvline(y[y>0].mean(), color="tab:red", linestyle="--", label="Mean A")
ax.axvline(y[y<0].mean(), color="tab:blue", linestyle="--", label="Mean B")

# Plot the normal distributions
x_values = np.linspace(y.min(), y.max(), 1000)
mean_a = np.median(y[y>0])
mean_b = np.median(y[y<0])
std_a = y[y>0].std()
std_b = y[y<0].std()

ax.plot(x_values, norm.pdf(x_values, loc=mean_a, scale=std_a), color="tab:red", label="Normal A")
ax.plot(x_values, norm.pdf(x_values, loc=mean_b, scale=std_b), color="tab:blue", label="Normal B")
stacked = norm.pdf(x_values, loc=mean_a, scale=std_a) + norm.pdf(x_values, loc=mean_b, scale=std_b)
ax.plot(x_values, stacked, color="tab:purple", label="Stacked Normals")

# Final touches
plt.xlabel("E1")
plt.ylabel("Density")
plt.legend(loc='best')
plt.tight_layout()

Model Specification

Here, the structure of the model is as follows:

We keep the assumption that the E1 values can be drawn from two Gaussian priors, one for A compartments and one for B compartments. To introduce spatial dependency, we use rolling regression with a Gaussian Random Walk (GRW) prior on the latent state variable (p) that is then squished through a sigmoid function.

NB We only use a GRW on the latent variable in this model as a simpler alternative GRW on the E1. Guess what comes next.

Notation

Let: - $y_i$: Observed E1 value at bin $i$ - $ z_i {0, 1} $: Latent compartment assignment (0 = B, 1 = A) - $ _A, _B $: Mean E1 values for compartments A and B - $ $: Shared standard deviation across bins - $ p $: Prior probability of a bin belonging to compartment A

Model Variables

\[ \begin{aligned} \mu_A &\sim \mathcal{N}(0.5, 0.5) \\ \mu_B &\sim \mathcal{N}(-0.5, 0.5) \\ \sigma &\sim \text{HalfNormal}(1) \\ logit(p) &\sim \text{GaussianRandomWalk}(\sigma) \\ p_i &\sim \text{Sigmoid}(logit(p)) \\ z_i &\sim \text{Bernoulli}(p_i) \\ \mu_i &= z_i \cdot \mu_A + (1 - z_i) \cdot \mu_B \\ y_i &\sim \mathcal{N}(\mu_i, \sigma) \\ \end{aligned} \]

PyMC

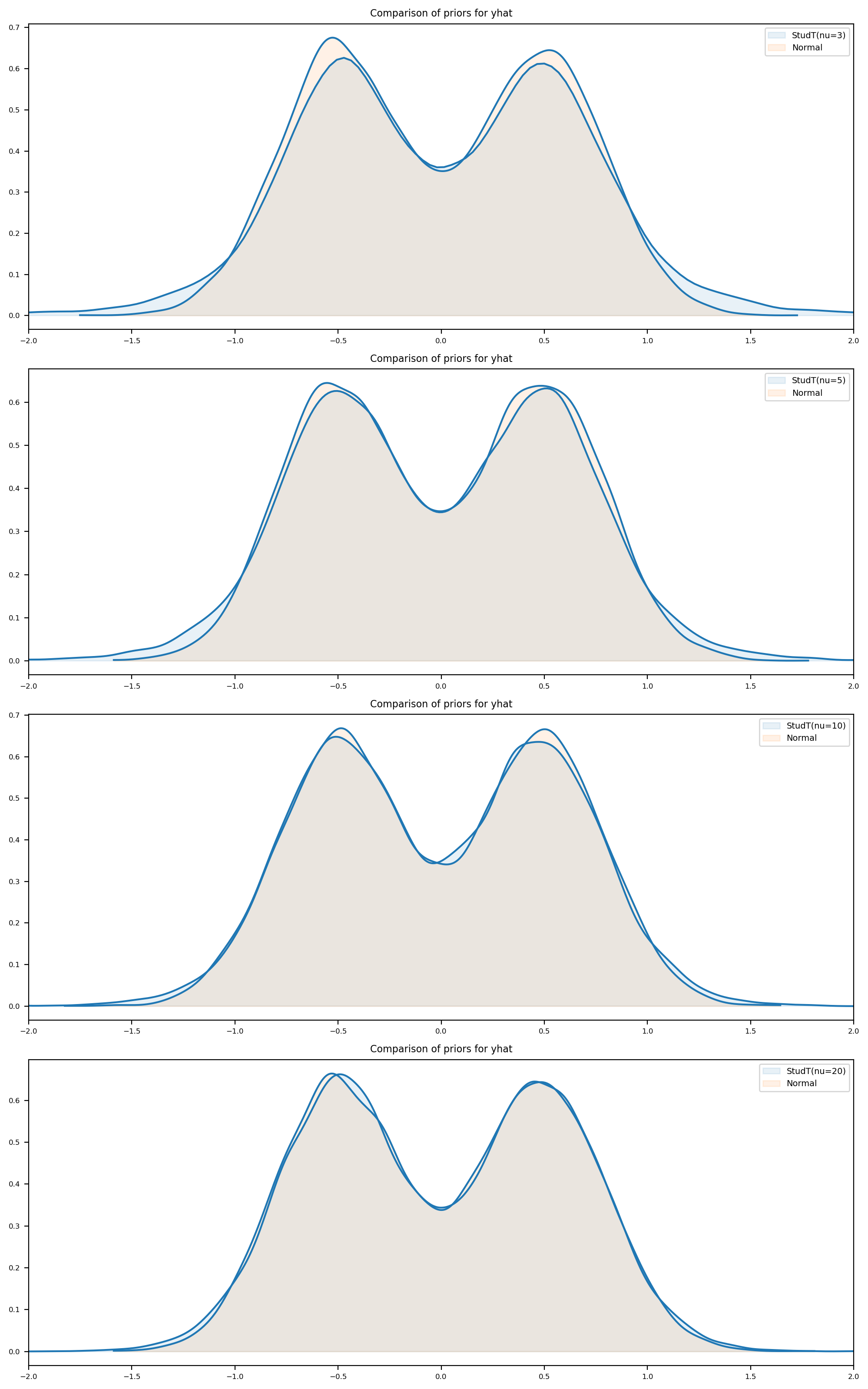

Visualize distributions


#params = [(0.5, 0.5), (2, 2), (1, 1)]
nus = [3, 5, 10, 20]
mus = [-0.5, 0.5]
colors = ["tab:blue", "tab:orange", "tab:green", "tab:purple"]

fig, axs = plt.subplots((len(nus)), figsize=(10, 4*len(nus)))
axs = axs.flatten()

for nu,col,ax in zip(nus, colors, axs):
    with pm.Model() as yhat_priors:
        nu_T = pm.StudentT("nu_T", nu=nu, mu=mus, sigma=0.3)
        nu_norm = pm.Normal("nu_norm", mu=mus, sigma=0.3)
        prior = pm.sample_prior_predictive(samples=10000)
        ax.set_title("Comparison of priors for yhat")
        az.plot_kde(prior.prior["nu_T"].values, label=f"StudT(nu={nu})", ax=ax, fill_kwargs={"alpha": 0.1, "color":colors[0]})
        ax.set_title("Comparison of priors for yhat")
        az.plot_kde(prior.prior["nu_norm"].values, label="Normal", ax=ax, fill_kwargs={"alpha": 0.1, "color":colors[1]})
        ax.set_xlim(-2, 2)
        plt.tight_layout()

Sampling: [nu_T, nu_norm]
Sampling: [nu_T, nu_norm]
Sampling: [nu_T, nu_norm]
Sampling: [nu_T, nu_norm]

Legacy: Centered GRW

with pm.Model(coords={"pos": df.index.values}) as legacy_model:
    """
    Model E1 track as a continous mixture of two normals using a Gaussian Random Walk (GRW) to model the mixing proportions.
    The GRW is applied to the logit space to ensure the mixing proportions are between 0 and 1.
    """
    e1 = pm.Data("e1", df.e1.values, dims="pos")
    n = e1.shape[0]

    mu_a = pm.Normal("mu_a", 0.5, 0.3)
    mu_b = pm.Normal("mu_b", -0.5, 0.3)
    sigma = pm.HalfNormal("sigma", 0.3)

    # GRW over logit space
    grw_sigma = pm.HalfNormal("grw_sigma", 0.1)
    logit_w = pm.GaussianRandomWalk("logit_w",
                                    sigma=grw_sigma, shape=n,
                                    init_dist=pm.Normal.dist(mu=0.0, sigma=1.0),  # or a tighter prior if preferred
                                    dims="pos"
                                    )
    w = pm.Deterministic("w", pm.math.sigmoid(logit_w), dims="pos")

    components = pm.Normal.dist(mu = pm.math.stack([mu_a, mu_b]),
                           sigma = sigma,
                           shape=(2,))

    # Likelihood estimate
    y_hat = pm.Mixture("y_hat", w=pm.math.stack([w,1-w], axis=1), comp_dists=components, observed=e1, dims='pos')

New: Non-centered GRW

This patch is still a Gaussian Random Walk, but expressed in a non-centered form.

What stays the same:

The process is still a cumulative sum of Gaussian increments, i.e.,
\[\text{logit}_w[t] = \sum_{i=1}^t \epsilon_i \cdot \sigma\]
where $\epsilon_i \sim \mathcal{N}(0,1)$.
This is exactly what a GRW is.

What’s different:

Instead of sampling $\text{logit}_w$ directly, we sample the standardized increments $\epsilon$ and reconstruct $\text{logit}_w$ via cumsum.
This reduces posterior curvature and pathologies, especially around $\sigma$, improving NUTS performance.

Why it helps:

In the centered form, large values of grw_sigma lead to very spread-out walks → hard geometry.
The non-centered form handles the scale explicitly, so NUTS explores $\epsilon$ space more efficiently.

import pytensor.tensor as pt

with pm.Model(coords={"pos": df.index.values}) as model:
    """
    Model E1 track as a continous mixture of two normals using a Gaussian Random Walk (GRW) to model the mixing proportions.
    The GRW is applied to the logit space to ensure the mixing proportions are between 0 and 1.
    This is a non-centered reparameterization of the model.
    The model uses ordered parameters for mu_a and mu_b to ensure they are distinct and do not switch.
    """
    e1 = pm.Data("e1", df.e1.values, dims="pos")

    # Old version, not ordered
    # mu_a = pm.Normal("mu_a", 0.5, 0.3)
    # mu_b = pm.Normal("mu_b", -0.5, 0.3)
    # New: Make ordered parameters for mu_a and mu_b in stead
    mu = pm.Normal("mu", mu=[-0.5, 0.5], sigma=0.3,
        transform=pm.distributions.transforms.ordered, # IMPORTANT
        shape=2,
        )
    sigma = pm.HalfNormal("sigma", 0.3, shape=2)

    # GRW over logit space; non-centered reparameterization
    grw_sigma = pm.HalfNormal("grw_sigma", 0.05)
    # Normal distribution for eps
    #eps = pm.Normal("eps", mu=0.0, sigma=1, dims="pos")

    # StudentT distribution for eps (got alot of divergences with nu=3)
    eps = pm.StudentT("eps", nu=10, mu=0.0, sigma=1.0, dims="pos")

    logit_w = pm.Deterministic("logit_w", pt.cumsum(eps * grw_sigma), dims="pos")
    w = pm.Deterministic("w", pm.math.sigmoid(logit_w), dims="pos")

    # Old version, not ordered
    # components = pm.Normal.dist(mu = pm.math.stack([mu_a, mu_b]), sigma = sigma, shape=(2,))

    # New: Use the ordered mu parameters (cleaner code as well)
    # components = pm.Normal.dist(mu=mu, sigma=sigma, shape=2)
    components = pm.StudentT.dist(nu=10, mu=mu, sigma=sigma, shape=2)

    # Likelihood estimate
    y_hat = pm.Mixture("y_hat", w=pm.math.stack([w,1-w], axis=1), comp_dists=components, observed=e1, dims='pos')

Model graphs

# Visualize
# display(legacy_model.to_graphviz(),
#         model.to_graphviz())


gv1 = pm.model_to_graphviz(legacy_model, figsize=(5,5))
gv2 = pm.model_to_graphviz(model, figsize=(5,5))

display(gv1, gv2)

with model:
    # Sample from the prior
    idata = pm.sample_prior_predictive(samples=1000)

idata

Sampling: [eps, grw_sigma, mu, sigma, y_hat]

prior_predictive_e1 = az.extract(idata, group="prior_predictive", var_names=["y_hat"])

print(pd.DataFrame({
    "Statistic": ["Min", "Max", "Std"],
    "Value": [
        prior_predictive_e1.values.min(),
        prior_predictive_e1.values.max(),
        prior_predictive_e1.values.std()
    ]
}))

#y_lik_norm (min, max, std): {prior_predictive_e1.y_lik_norm.values.min(), prior_predictive_e1.y_lik_norm.values.max(), prior_predictive_e1.y_lik_norm.values.std()}

  Statistic     Value
0       Min -5.779701
1       Max  5.194263
2       Std  0.666041

e1_obs = df['e1'].values

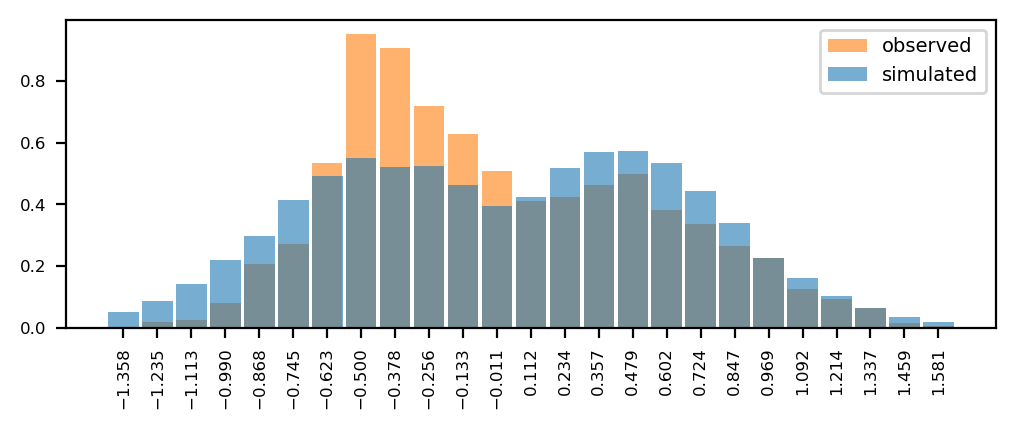

az.plot_dist(
    e1_obs,
    kind="hist",
    color="C1",
    hist_kwargs={"alpha": 0.6,  "bins": 25},
    label="observed"
)



prior_pred_obs = idata.prior_predictive["y_hat"].stack(sample=("chain", "draw")).values
prior_pred_obs = prior_pred_obs[prior_pred_obs > e1_obs.min()]  # Constrain the range to observed values
prior_pred_obs = prior_pred_obs[prior_pred_obs < e1_obs.max()]  # Constrain the range to observed values

az.plot_dist(
    prior_pred_obs,
    kind="hist",
    hist_kwargs={"alpha": 0.6, "bins":25},
    label="simulated",
)
plt.xticks(rotation=90);

Posterior sampling

with model:
    # Sample from the posterior
    trace = pm.sample(1000, tune=1000, cores=8, chains=8, target_accept=0.95)


idata.extend(trace)

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (8 chains in 8 jobs)
NUTS: [mu, sigma, grw_sigma, eps]

Outfrom legacy_model

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (8 chains in 8 jobs)
NUTS: [mu_a, mu_b, sigma, grw_sigma, logit_w]

Sampling 8 chains for 2_000 tune and 1_000 draw iterations (16_000 + 8_000 draws total) took 1377 seconds.
There were 106 divergences after tuning. Increase `target_accept` or reparameterize.
Chain 0 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
Chain 1 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
Chain 2 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
Chain 3 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
Chain 4 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
Chain 5 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
Chain 6 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
Chain 7 reached the maximum tree depth. Increase `max_treedepth`, increase `target_accept` or reparameterize.
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details
The effective sample size per chain is smaller than 100 for some parameters.  A higher number is needed for reliable rhat and ess computation. See https://arxiv.org/abs/1903.08008 for details

with model:
    # Posterior predictive checks
    ppc = pm.sample_posterior_predictive(idata, var_names=["y_hat"], random_seed=42, extend_inferencedata=True)

Sampling: [y_hat]

idata

# az.plot_trace(idata, var_names=['mu_a','mu_b', 'grw_sigma'],combined=True, backend_kwargs={'layout': 'tight'})

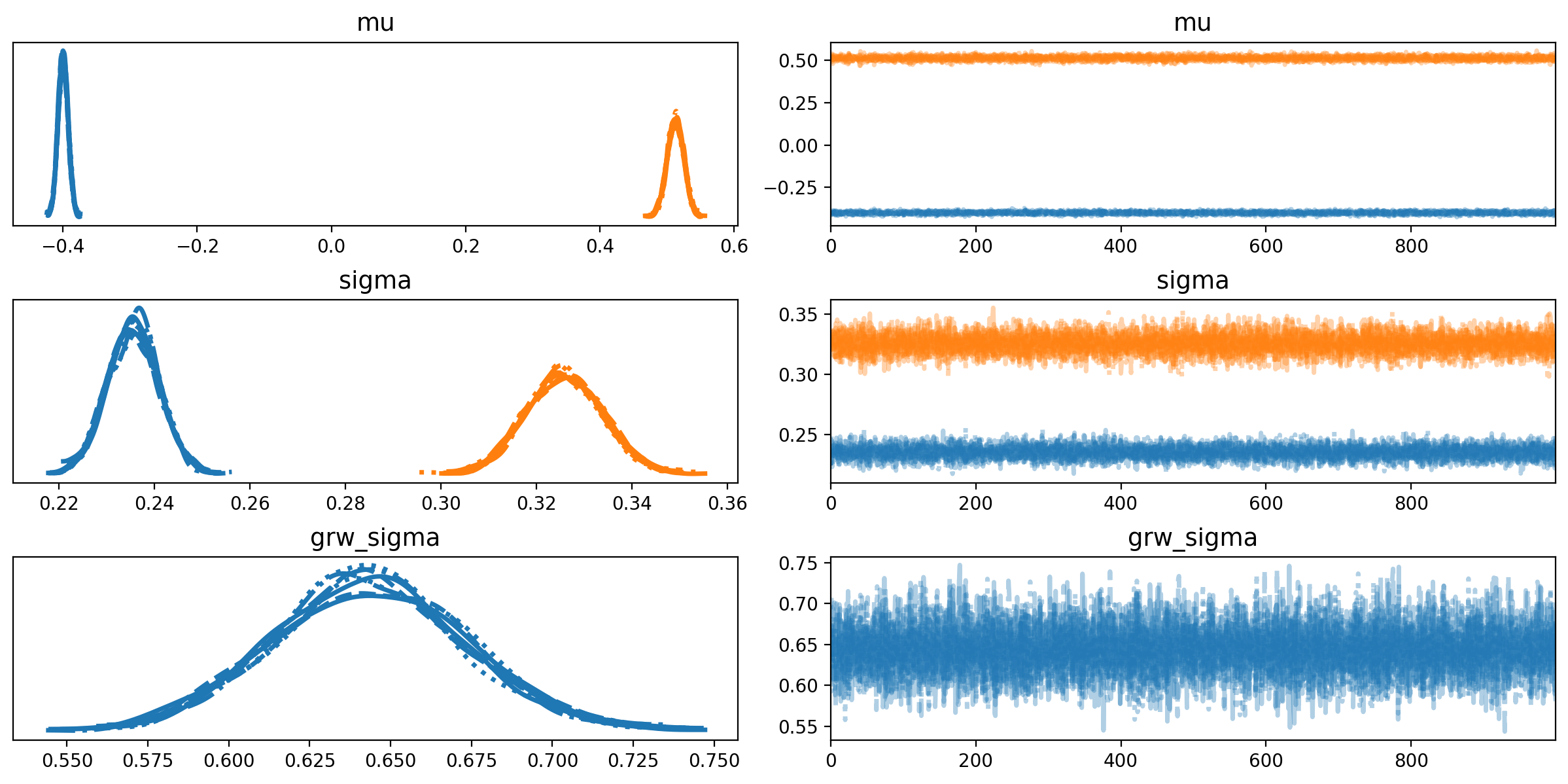

az.plot_trace(idata, var_names=['mu', 'sigma', 'grw_sigma'], compact=True, backend_kwargs={'layout': 'tight'});

# az.summary(idata, var_names=['mu_a','mu_b', 'grw_sigma'], kind='stats', round_to=2)
az.summary(idata, var_names=['mu', 'sigma', 'grw_sigma'], kind='stats', round_to=2)

	mean	sd	hdi_3%	hdi_97%
mu[0]	-0.40	0.01	-0.41	-0.39
mu[1]	0.51	0.01	0.49	0.54
sigma[0]	0.24	0.01	0.23	0.25
sigma[1]	0.33	0.01	0.31	0.34
grw_sigma	0.64	0.03	0.59	0.70

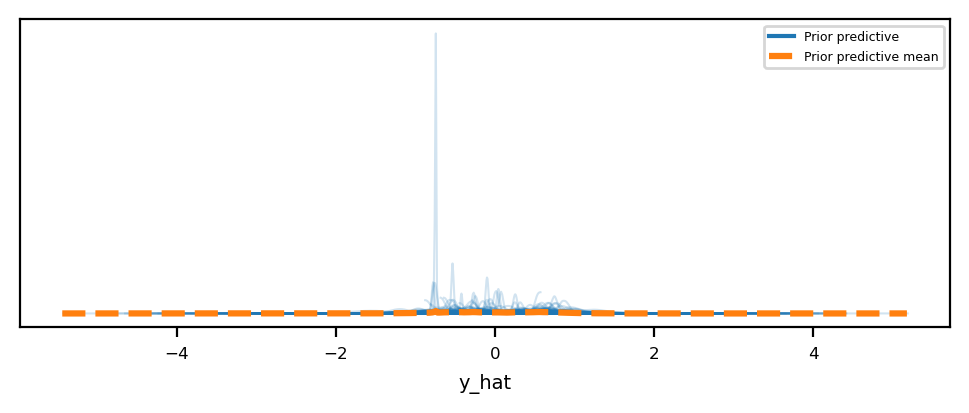

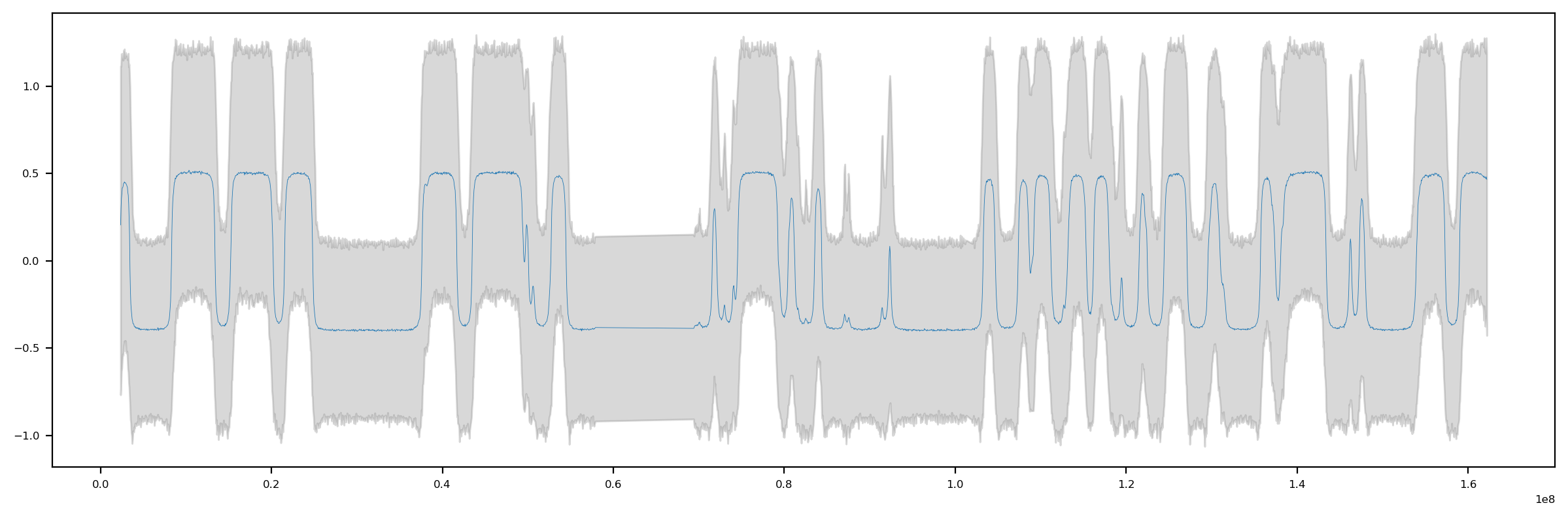

az.plot_ppc(idata, var_names=["y_hat"], num_pp_samples=200, group='prior');

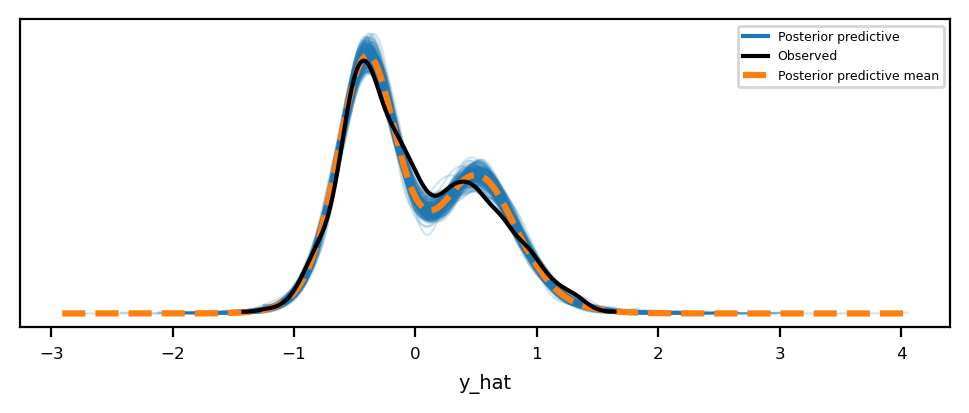

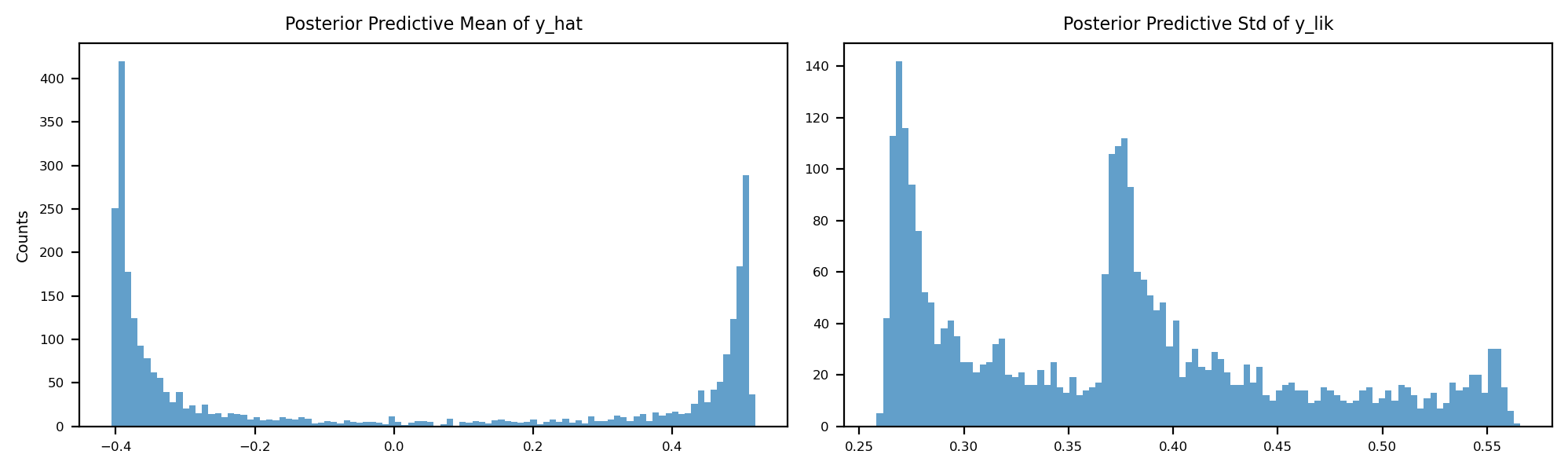

az.plot_ppc(idata, var_names=["y_hat"], num_pp_samples=200);

with model:
    ll = pm.compute_log_likelihood(idata, var_names=["y_hat"])

az.loo(idata)

/home/sojern/miniconda3/envs/pymc/lib/python3.13/site-packages/arviz/stats/stats.py:797: UserWarning: Estimated shape parameter of Pareto distribution is greater than 0.70 for one or more samples. You should consider using a more robust model, this is because importance sampling is less likely to work well if the marginal posterior and LOO posterior are very different. This is more likely to happen with a non-robust model and highly influential observations.
  warnings.warn(

Computed from 8000 posterior samples and 2913 observations log-likelihood matrix.

         Estimate       SE
elpd_loo  -765.31    38.32
p_loo       52.31        -

There has been a warning during the calculation. Please check the results.
------

Pareto k diagnostic values:
                         Count   Pct.
(-Inf, 0.70]   (good)     2898   99.5%
   (0.70, 1]   (bad)        15    0.5%
   (1, Inf)   (very bad)    0    0.0%

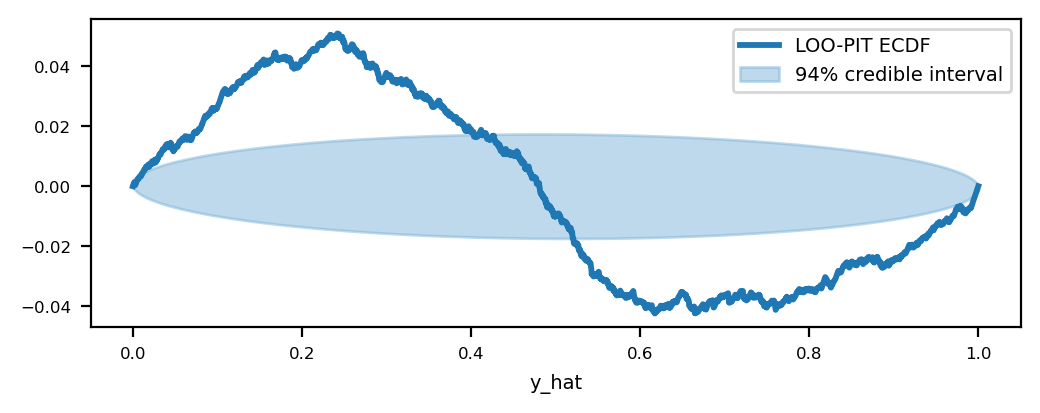

az.plot_loo_pit(idata, y = 'y_hat',  n_unif=1000, ecdf=True);

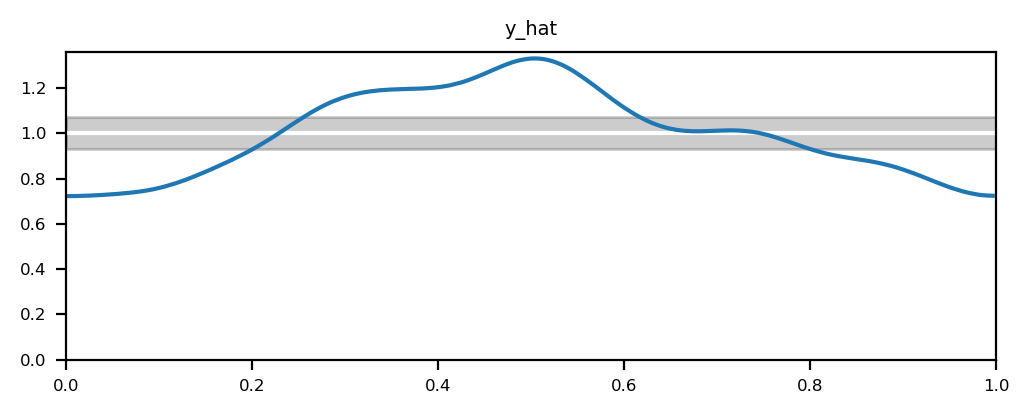

az.plot_bpv(idata);

trace_yhat = az.summary(idata, var_names=["y_hat"], kind="stats", group="posterior_predictive")
trace_yhat

	mean	sd	hdi_3%	hdi_97%
y_hat[47]	0.206	0.551	-0.768	1.117
y_hat[48]	0.300	0.517	-0.715	1.115
y_hat[49]	0.359	0.493	-0.633	1.187
y_hat[50]	0.384	0.474	-0.615	1.168
y_hat[51]	0.418	0.451	-0.565	1.157
...	...	...	...	...
y_hat[3240]	0.482	0.401	-0.375	1.198
y_hat[3241]	0.476	0.402	-0.324	1.227
y_hat[3242]	0.470	0.400	-0.374	1.188
y_hat[3243]	0.482	0.407	-0.313	1.278
y_hat[3244]	0.467	0.412	-0.428	1.190

2913 rows × 4 columns

print(pd.DataFrame({
    "mean": [trace_yhat['mean'].mean(), trace_yhat['mean'].std()],
    "sd": [trace_yhat['sd'].mean(), trace_yhat['sd'].std()]
}).set_index(pd.Index(['means', 'sds'])).round(4))

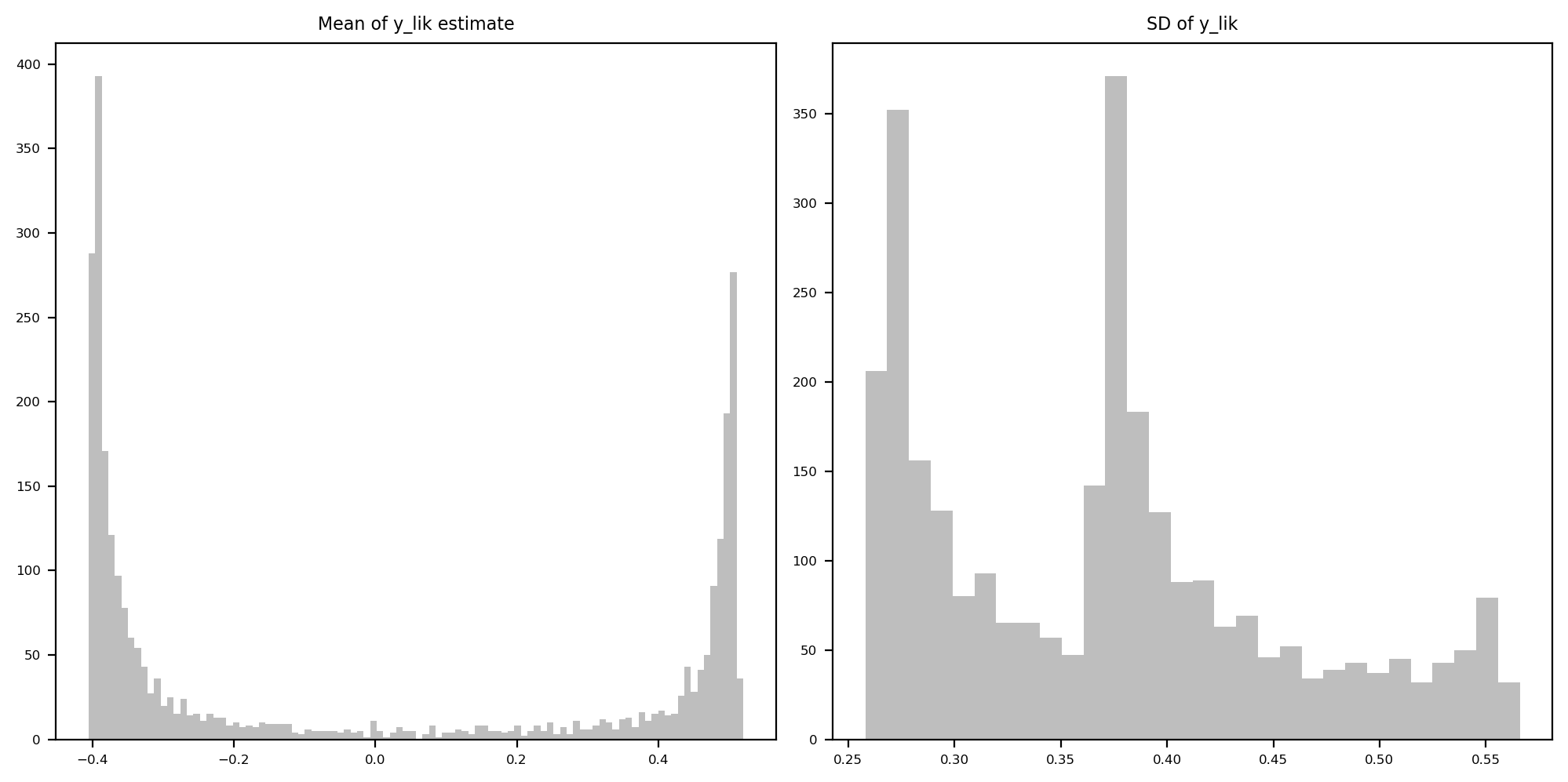

f,ax = plt.subplots(1,2, figsize=(10, 5))
ax = ax.flatten()
ax[0].set_title("Mean of y_hat estimate")
ax[0].hist(trace_yhat['mean'], bins=100, color="tab:grey", alpha=0.5)
#ax[0].set_xlim(-0.05,0.05) # zoom-in on the near-zero peak
ax[1].set_title("SD of y_hat")
ax[1].hist(trace_yhat['sd'], bins=30, color="tab:grey", alpha=0.5)
plt.tight_layout()

         mean      sd
means -0.0161  0.3699
sds    0.3939  0.0828

f,ax = plt.subplots(figsize=(12,4))
ax.plot(df['start'], trace_yhat['mean'], lw=0.3)
ax.fill_between(df['start'], trace_yhat['hdi_97%'], trace_yhat['hdi_3%'], color="tab:grey", alpha=0.3, label="95% HDI")
plt.legend()
plt.tight_layout()

idata.posterior_predictive.stack(sample=("chain", "draw"))

y_ppc = idata.posterior_predictive["y_hat"]

y_ppc_flat = y_ppc.stack(sample=("chain", "draw"))


ppc_mean = y_ppc_flat.mean(dim="sample").values       # mean of predictions per bin
ppc_std = y_ppc_flat.std(dim="sample").values         # predictive std (uncertainty)
ppc_hdi = az.hdi(y_ppc, hdi_prob=0.95)

f,ax= plt.subplots(1,2, figsize=(10, 3))
ax[0].set_title("Posterior Predictive Mean of y_hat")
ax[0].set_ylabel("Counts")
ax[0].hist(ppc_mean, bins=100, alpha=0.7, label="Mean(y_hat)")
ax[1].set_title("Posterior Predictive Std of y_lik")
ax[1].hist(ppc_std, bins=100, alpha=0.7, label="Std(y_hat)")
plt.tight_layout()

# ppc_mean: shape (bins,)
# mean_ll: shape (bins,)

posterior_mean = idata.posterior_predictive["y_hat"].mean(dim=["chain", "draw"]).values
mean_ll = idata.log_likelihood.y_hat.mean(dim=["chain", "draw"]).values
x = df.start.values
y = df.e1.values

# Plot the data as a track (stairs for niceity)

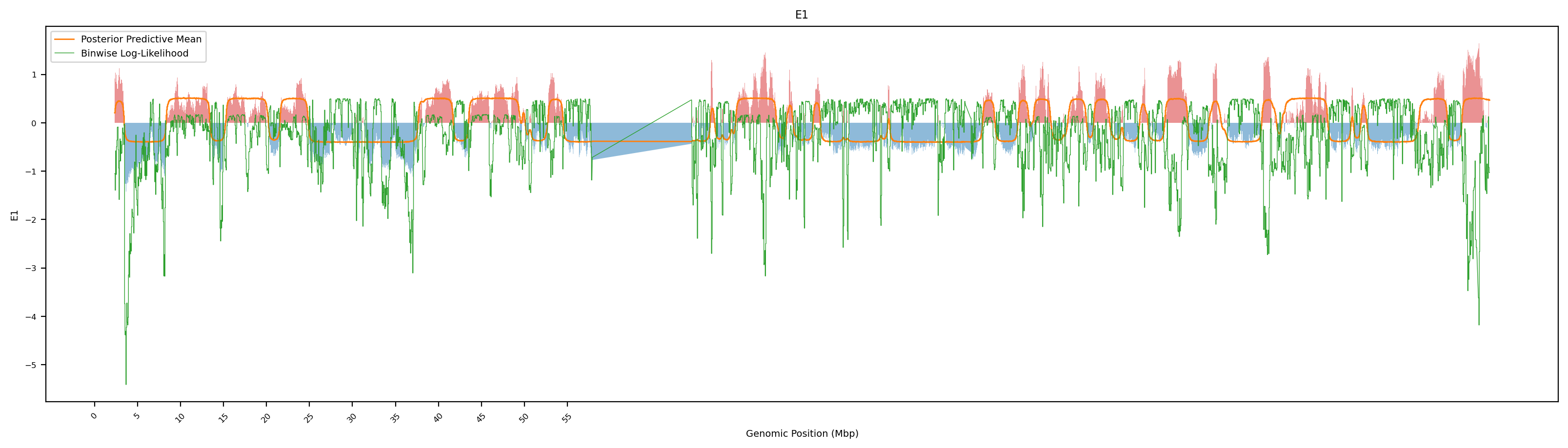

fig, ax = plt.subplots(figsize=(20, 5))

# Stairs
x_stair = np.zeros(2*y.shape[0])
y_stair = np.zeros(2*y.shape[0])
x_stair[0::2] = x
x_stair[1::2] = x + resolution
y_stair[0::2] = y
y_stair[1::2] = y

ax.fill_between(x_stair, y_stair, where=(y_stair<0), color="tab:blue", alpha=0.5, ec='None')
ax.fill_between(x_stair, y_stair, where=(y_stair>0), color="tab:red", alpha=0.5, ec='None')

# plot the y_ppc_flat mean
post_mean_stairs = np.zeros(2*y.shape[0])
post_mean_stairs[0::2] = posterior_mean
post_mean_stairs[1::2] = posterior_mean
ax.plot(x_stair, post_mean_stairs, lw=1, label="Posterior Predictive Mean", color="tab:orange")

# Plot the point-wise log-likelihood
ll_stair = np.zeros(2*mean_ll.shape[0])
ll_stair[0::2] = mean_ll
ll_stair[1::2] = mean_ll
ax.plot(x_stair, ll_stair, lw=0.5, label="Binwise Log-Likelihood", color="tab:green")

ax.set_xlim(0, 57_984_683 + resolution)
ticks = np.arange(0, 57_984_683, step=5_000_000)
ax.set_xticks(ticks)
ax.set_xticklabels((ticks / 1e6).astype(int), rotation=45)
ax.set_xlabel("Genomic Position (Mbp)")
ax.set_ylabel("E1")
ax.set_title("E1")
ax.legend(loc="best");

bins = np.arange(len(y))

plt.figure(figsize=(15, 4))

# Observed data
plt.plot(bins, y, label="Observed E1", color="black", alpha=0.5)

# Posterior predictive mean
plt.plot(bins, ppc_mean, label="Posterior Mean", color="tab:red")

# Credible interval shading
plt.fill_between(
    bins,
    ppc_hdi.y_hat.sel(hdi='lower').values,
    ppc_hdi.y_hat.sel(hdi='higher').values,
    color="tab:red",
    alpha=0.3,
    label="95% Credible Interval",
    step='pre'
)

plt.hlines(0, xmin=0, xmax=bins.shape[0], color='black', linestyle='--', linewidth=0.5)

plt.xlabel("Genomic bin")
plt.ylabel("E1 value")
plt.title("Posterior Predictive Mean with 95% CI")
plt.legend()
plt.tight_layout()
plt.show()
