Inference basics

Bayesian Inference with SVGD (Stein Variational Gradient Descent)

To estimate model parameters and their confidence intervals, Phasic used uses Stein Variational Gradient Descent (SVGD), which represents the posterior with a set of particles (parameter vectors) and combines ideas from optimization, kernel methods, and functional analysis in a deterministic algorithm that updates these particles iteratively to move them toward the posterior distribution. SVGD exploits the PDF for gradient computation and moments for regularization. It begins with an initial set of particles (typically drawn from the prior or from a simple distribution) and iteratively transport these particles toward the posterior using gradient information. Each particle interacts with all other particles through a kernel function, with the interaction strength depending on the distance between particles. This interaction ensures that particles spread out to cover the posterior distribution, allowing extraction of not only the most likely parameter value (MAP estimate) but also a confidence interval of the estimate.

Such inference is not possible in the standard matrix formulation of phase-type distributions where the large number of likelihood computations required would each be $O(n^3)$. In Phasic, the algorithm of the gaussian elimination on the graph fully exploits the sparseness of state spaces bringing the complexity closer to $n^2$. Because Phasic records and caches the elimination trace, this computation is only done once, removing a dimension of complexity for all subsequent likelihood evaluations. For an expose of these tricks and innovations see Math and Algorithms, Architecture, Caching and Sharing.

from phasic import (
    Graph, with_ipv, GaussPrior, LogGaussPrior, HalfCauchyPrior, DataPrior,
    Adam, ExpStepSize, ExpRegularization, clear_caches, set_log_level
)
import sys
import numpy as np
import jax.numpy as jnp
import pandas as pd
from typing import Optional
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
import seaborn as sns
from tqdm.auto import tqdm
import vscodenb

import svgd_tests

sns.set_palette('tab10')
np.random.seed(42)

set_log_level('INFO')
clear_caches()

[INFO] phasic.graph_cache: Cleared 0 cached graphs

  Removed 77 file(s), preserved directory structure

Lets make a coalescent moddel with one parameter, the coalescent rate:

nr_samples = 4

@with_ipv([nr_samples]+[0]*(nr_samples-1))
def coalescent_1param(state):
    transitions = []
    for i in range(state.size):
        for j in range(i, state.size):
            same = int(i == j)
            if same and state[i] < 2:
                continue
            if not same and (state[i] < 1 or state[j] < 1):
                continue
            new = state.copy()
            new[i] -= 1
            new[j] -= 1
            new[i+j+1] += 1
            transitions.append([new, [state[i]*(state[j]-same)/(1+same)]])
    return transitions

Construct the graph and set some value of the model parameter:

graph = Graph(coalescent_1param)
graph.plot()

[INFO] phasic.graph_cache: Saved graph to cache: 4e7d3baaa4030c3c... (6 vertices)
[INFO] phasic: Saved graph to cache: 6 vertices

With a large set of observed times to the most recent common ancestor (TMRCA), we can fit our model to find the most likely value of the model parameter. For this turorial we will just set the model parameter to 7 and then sample from the model to get such a data set. This has the advantage that we know what the model parameter is supposed to be.

true_theta = [7]
graph.update_weights(true_theta)
nr_observations = 10000
observed_data = graph.sample(nr_observations)

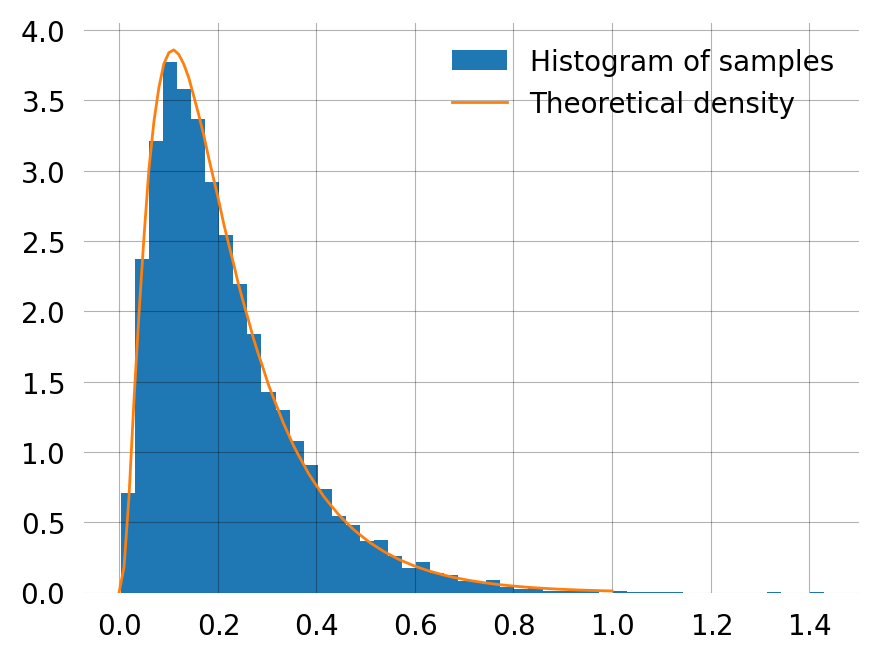

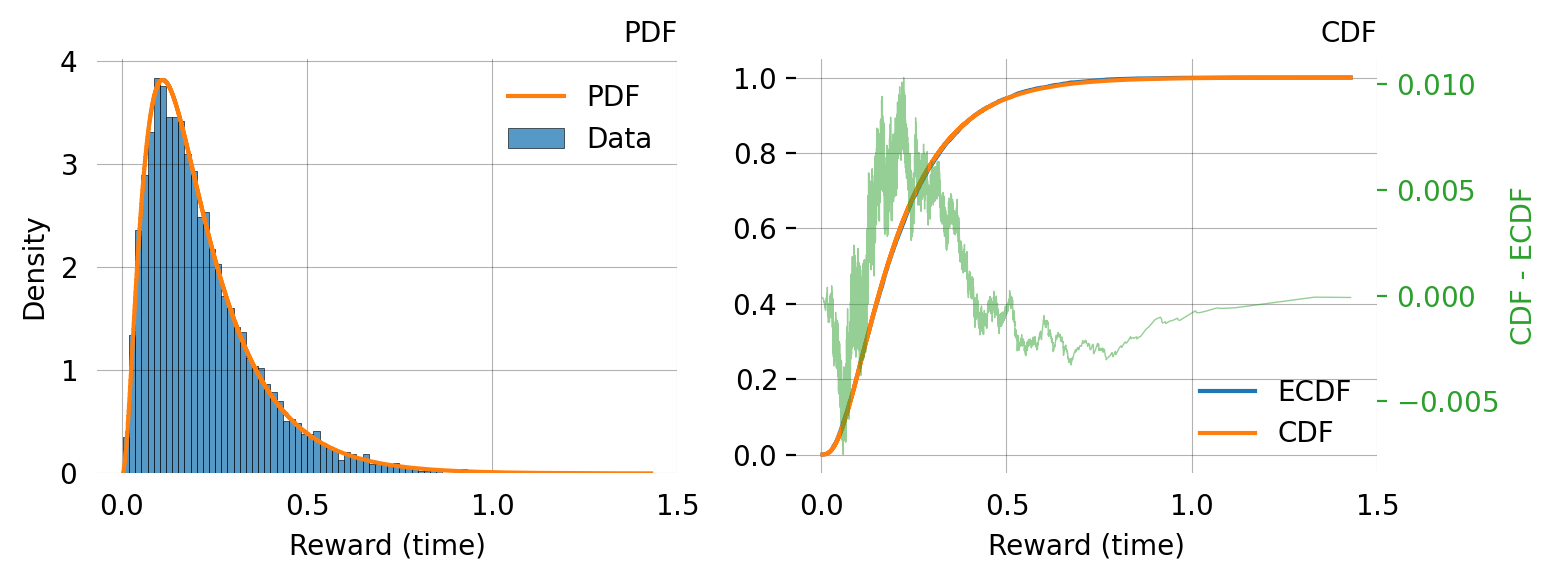

We can plot a histogram of the observed data along with the theoretical density to see that they match up:

fig, ax = plt.subplots()
ax.hist(observed_data, density=True, bins=50, label='Histogram of samples')
x = np.linspace(0, 1, 100)
ax.plot(x, graph.pdf(x), color='C1', lw=1, label='Theoretical density')
ax.legend() ;

The svgd method provide sensible defaults to the optimization parameters. So in the simplest version, all you have to do to fit parameter values is:

svgd = graph.svgd(observed_data)
svgd.summary()

Parameter  Fixed          MAP        Mean       SD         HPD 95% lo   HPD 95% hi
0          No             7.038      7.017      0.1039     6.923        7.276

Particles: 20, Iterations: 1000

A nice property of SVGD is that you can easily evaluate if the optimization converges. We would like to see both the mean and standard deviation across particles to plateau towards the end.

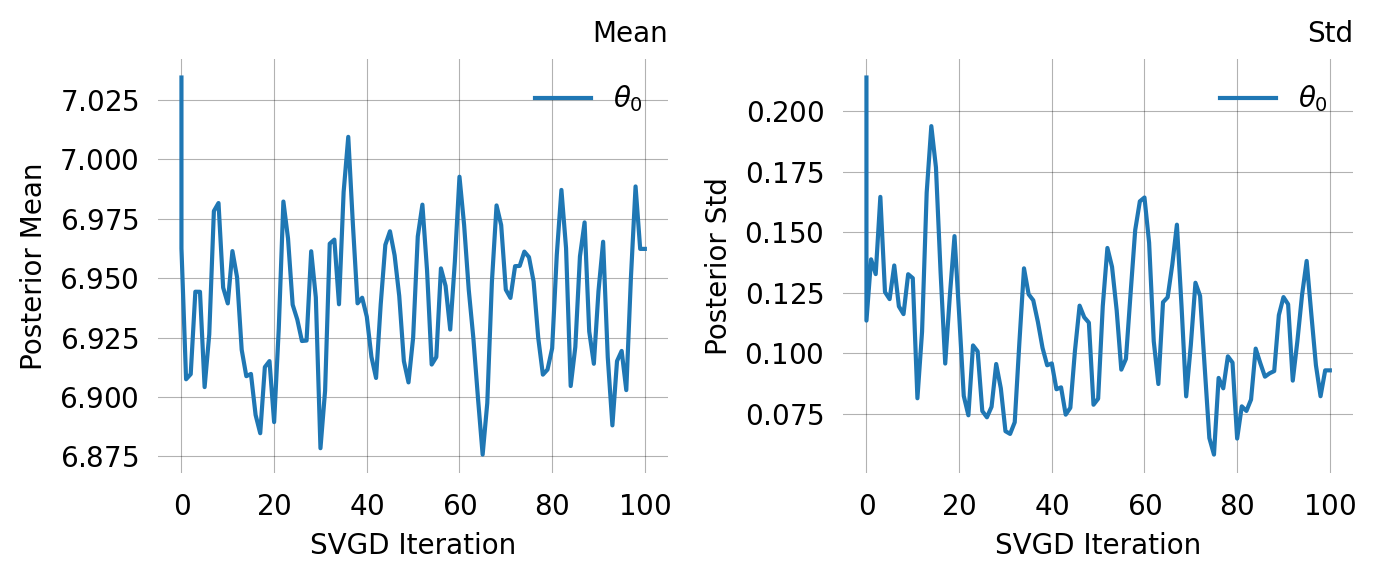

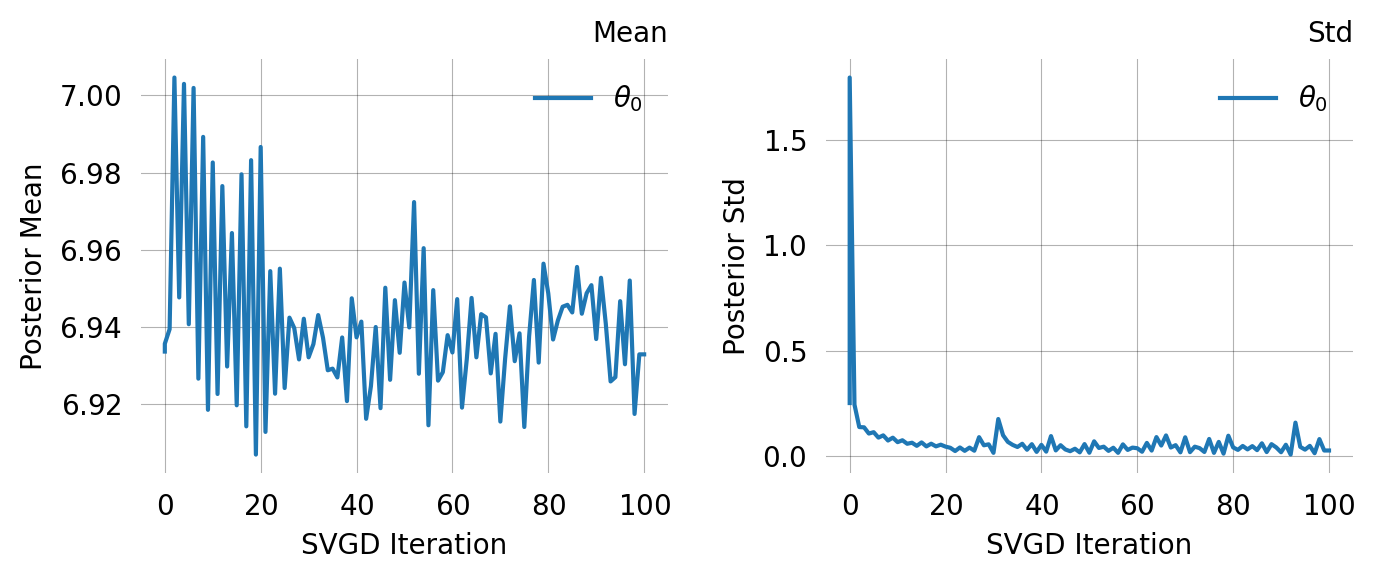

svgd.plot_convergence()

In this case they clearly do not. Fortunately there are several easy remedies for this as shown below.

Learning rate

We can change the learning rate the number of iterations from their default values:

svgd = graph.svgd(observed_data,
                  learning_rate=0.05,
                  n_iterations=200,
                  )

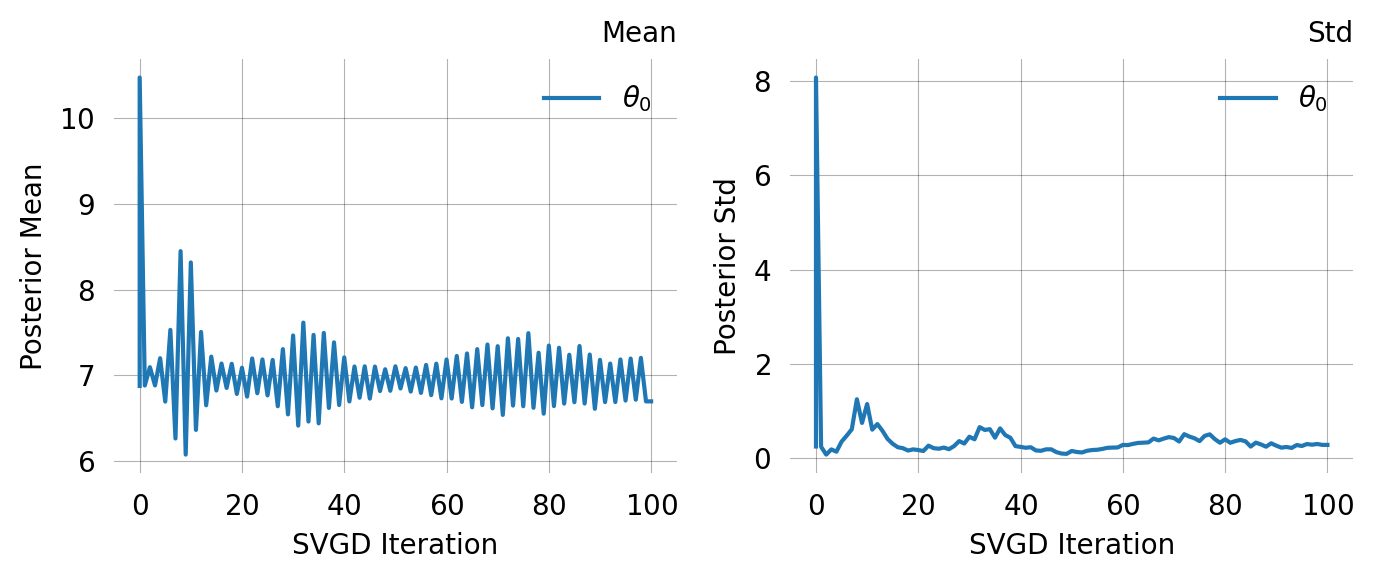

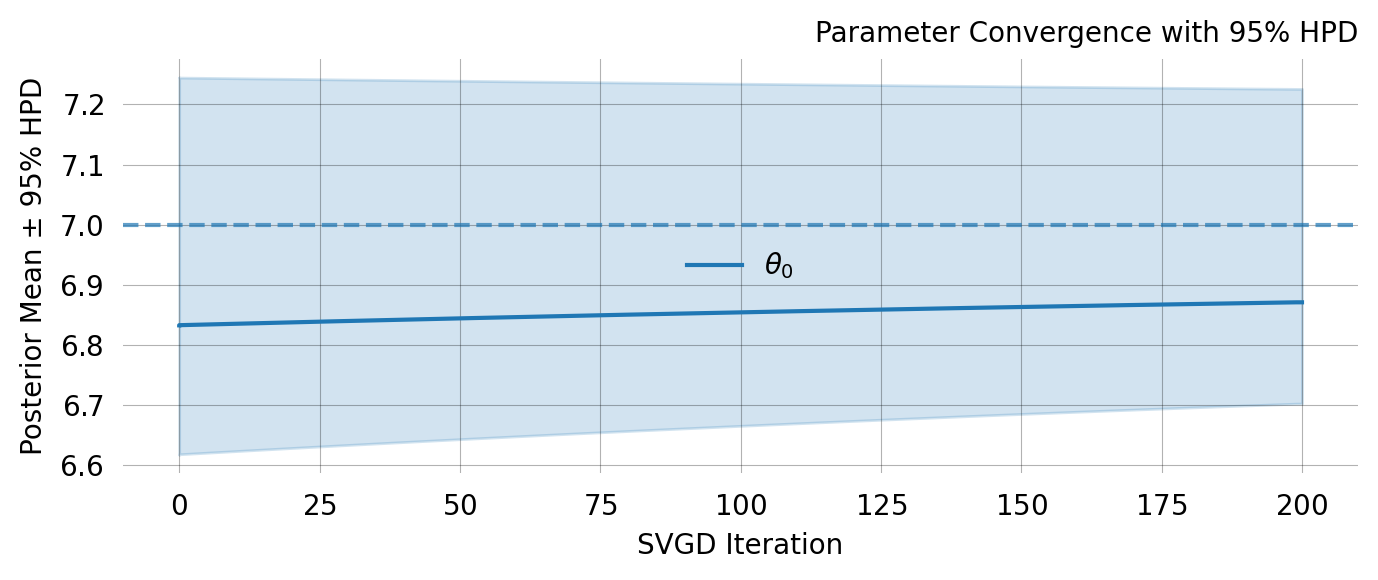

svgd.plot_convergence()

If the curves are not nice and smooth, you should inspect the parameter values of each particle across iterations:

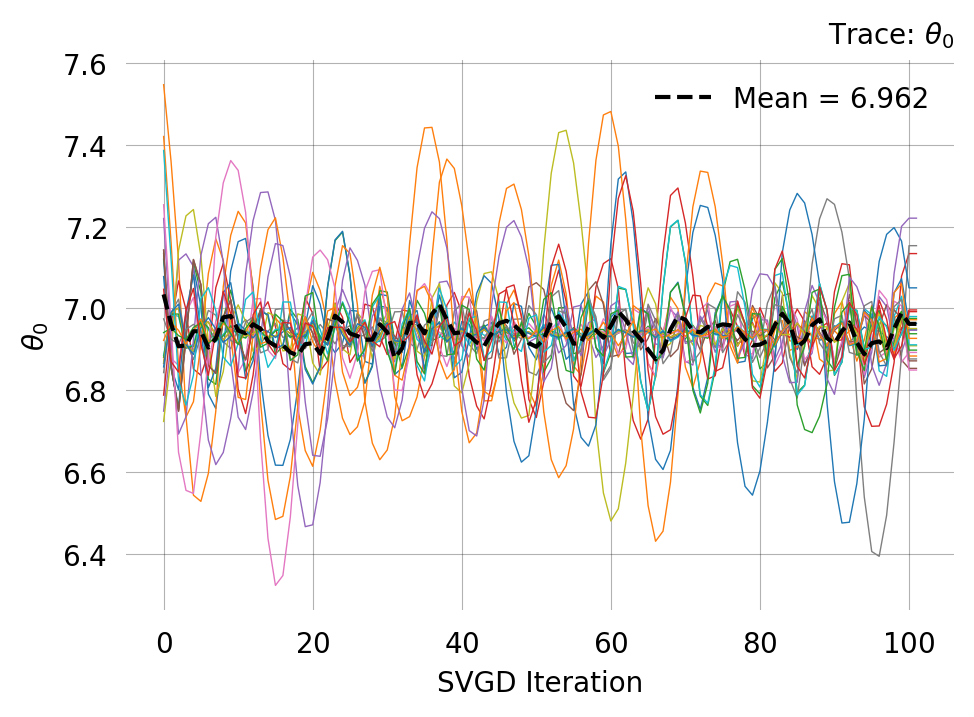

svgd.plot_trace();

You can also plot the acceleration (the relative rate of change of each particle estimate) for an alternative way to diagnose this behavior:

svgd.plot_trace_accel()

You an see the values jumping abruptly. That happens when the learning rate step is too large compared to the gradient. Since the gradient flattens during the fit, we need to make the learning rate start our large and decay exponentially during training. We can do that by passing “step size schedule” like ExpStepSize to svgd. Its lets you control the sizes of the first as last steps and the exponential transition between them (the tau argument).

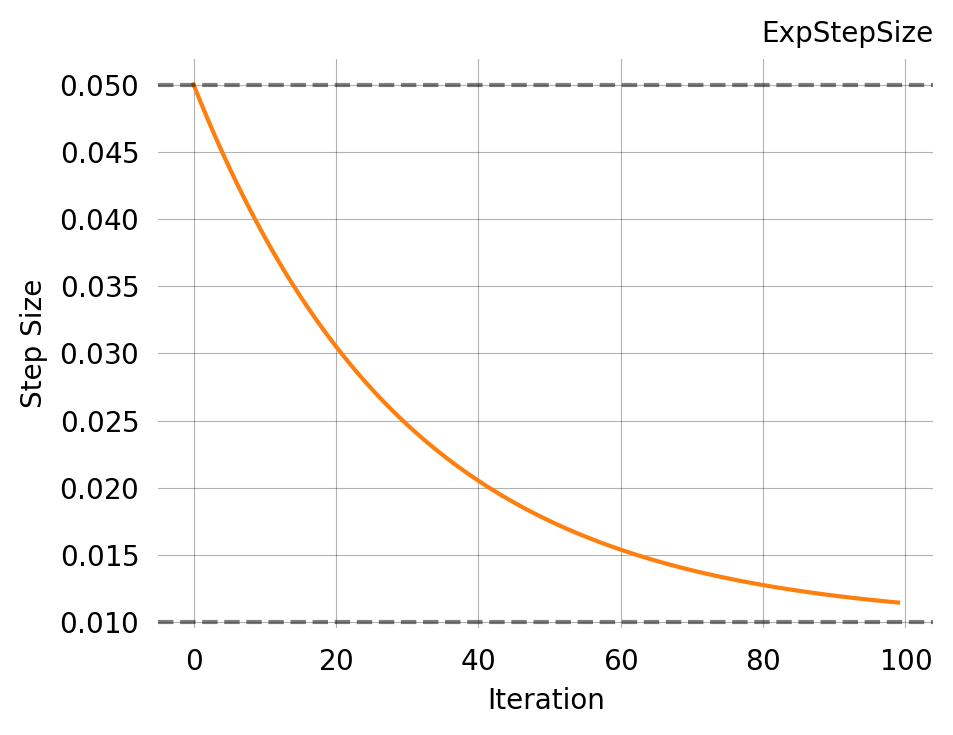

step_schedule = ExpStepSize(first_step=0.002, last_step=0.0001, tau=80.0)
step_schedule.plot(nr_iter=500);

svgd = graph.svgd(observed_data,
                  learning_rate=step_schedule,
                  n_iterations=200,
                  )

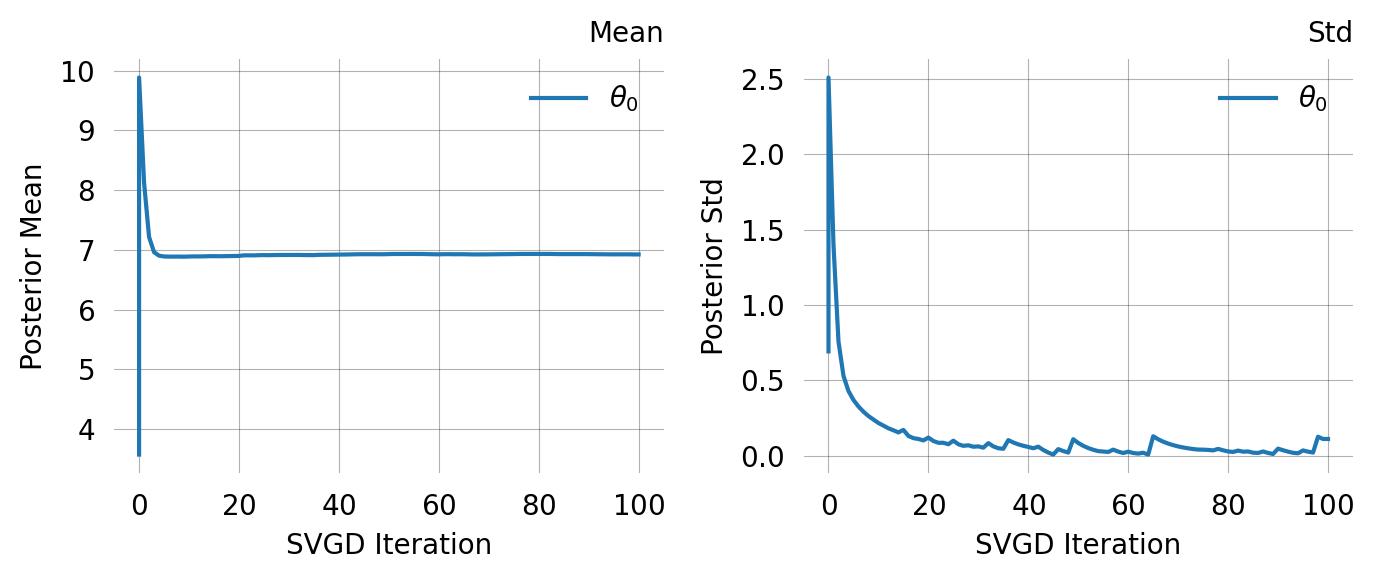

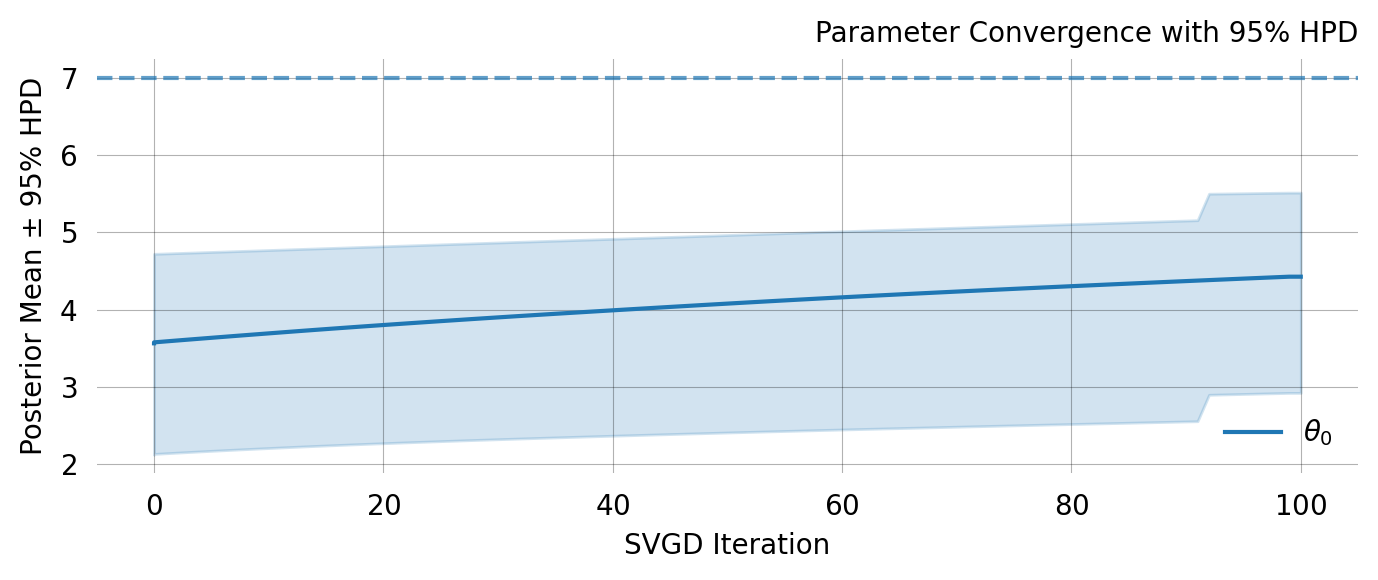

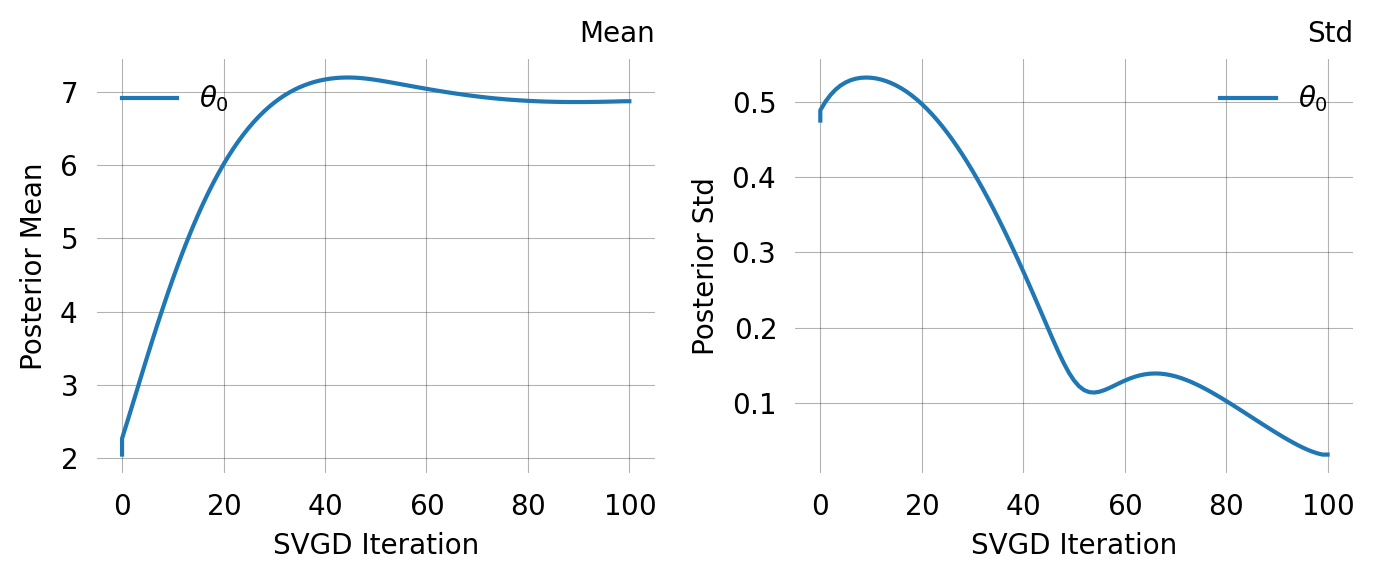

svgd.plot_convergence()

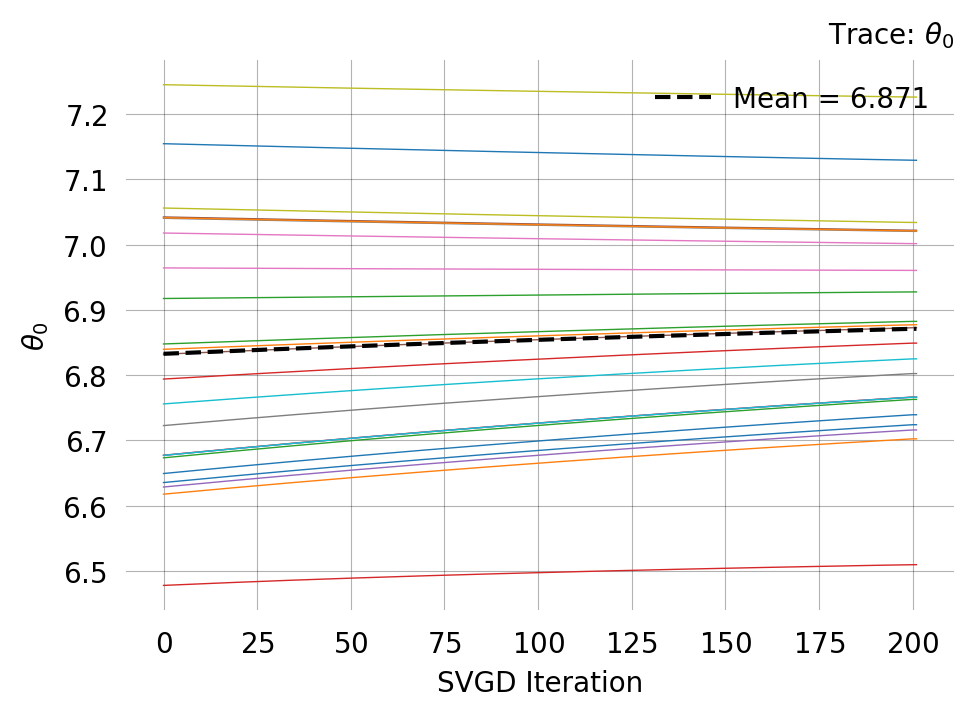

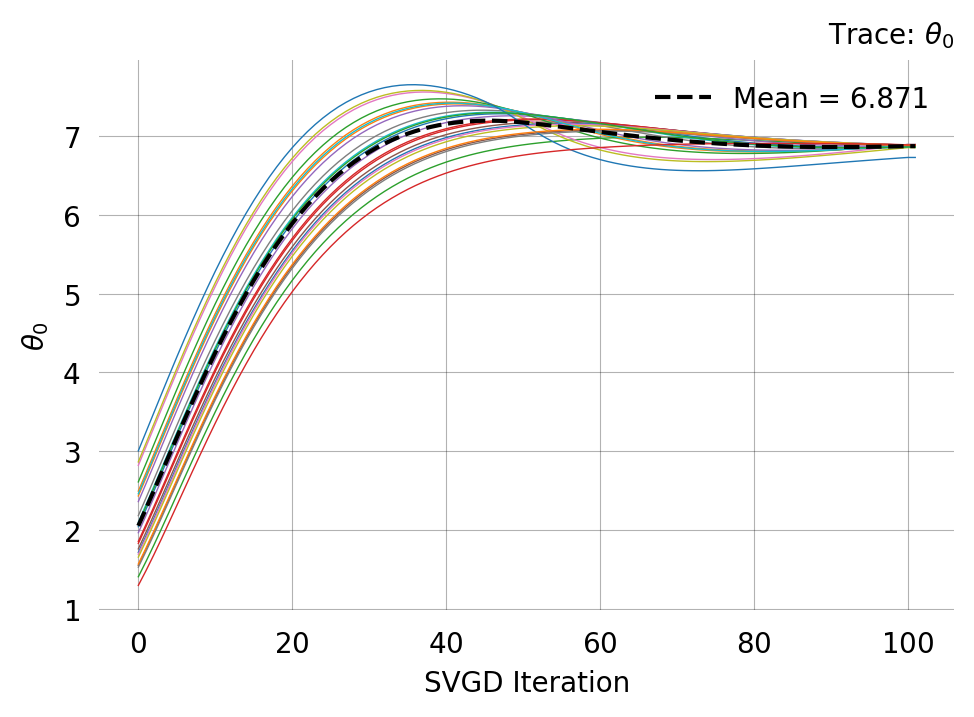

svgd.plot_trace()

svgd.plot_trace_accel()

The distribution of particle values describe the posterior distribution from which a mean and CI can be computed:

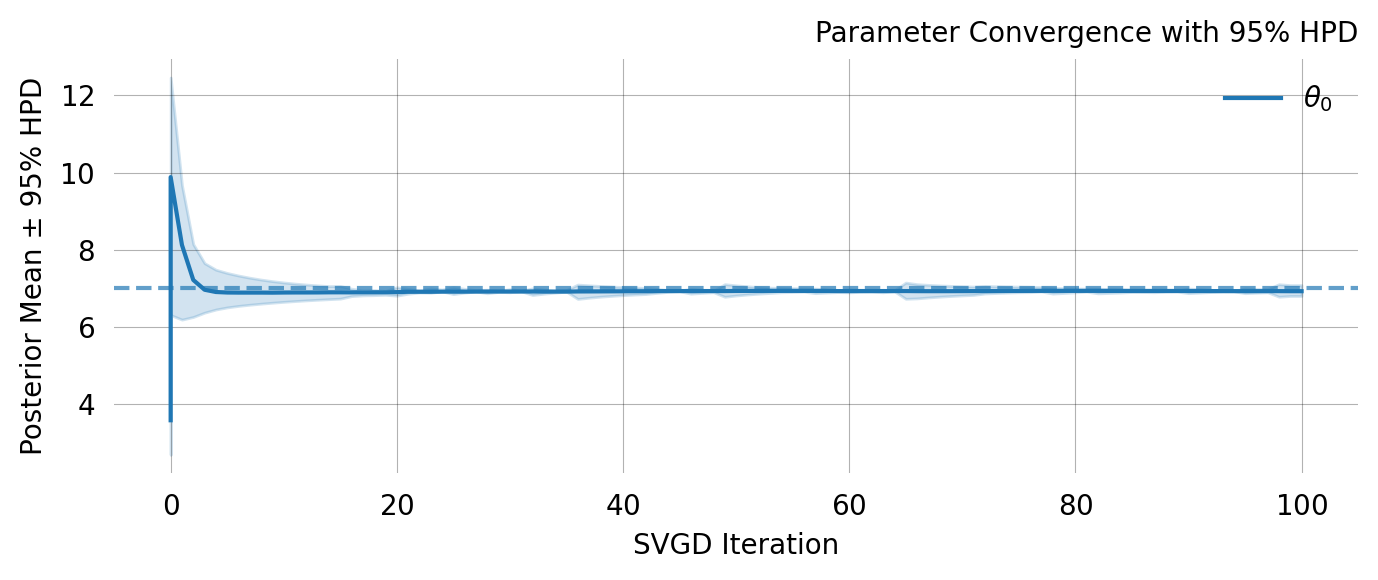

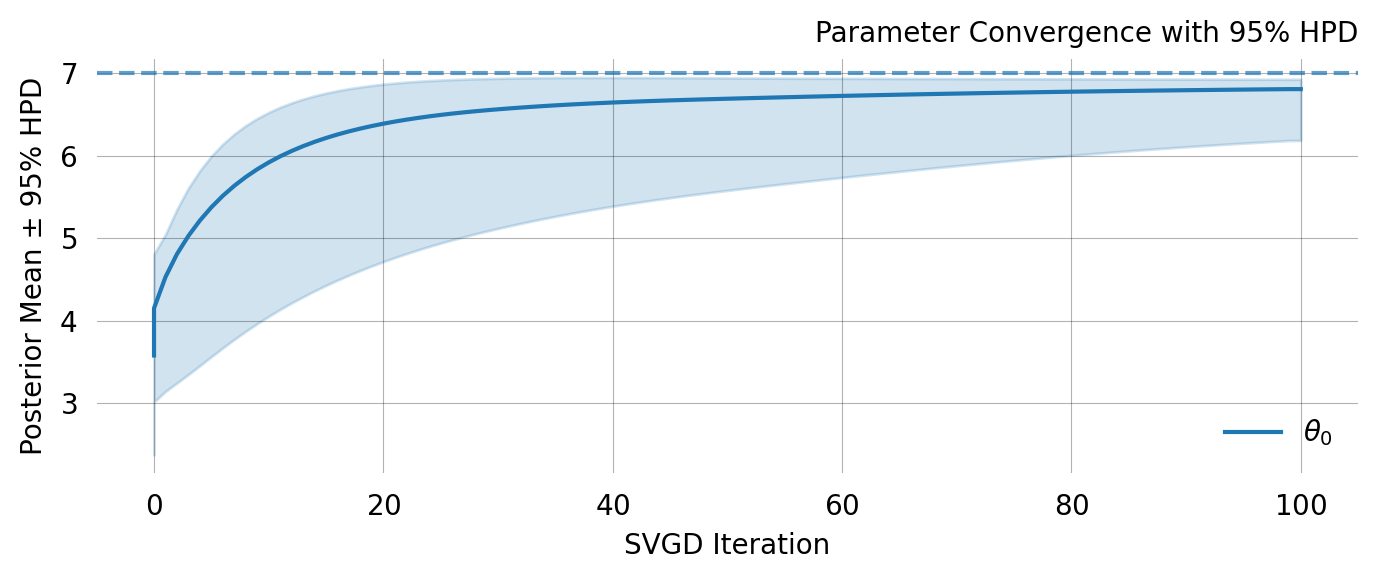

svgd.plot_ci(true_theta=true_theta)

svgd.plot_ci(true_theta=true_theta, ci=0.5)

You can even make an animation of the fit with svgd.animate().

Prior

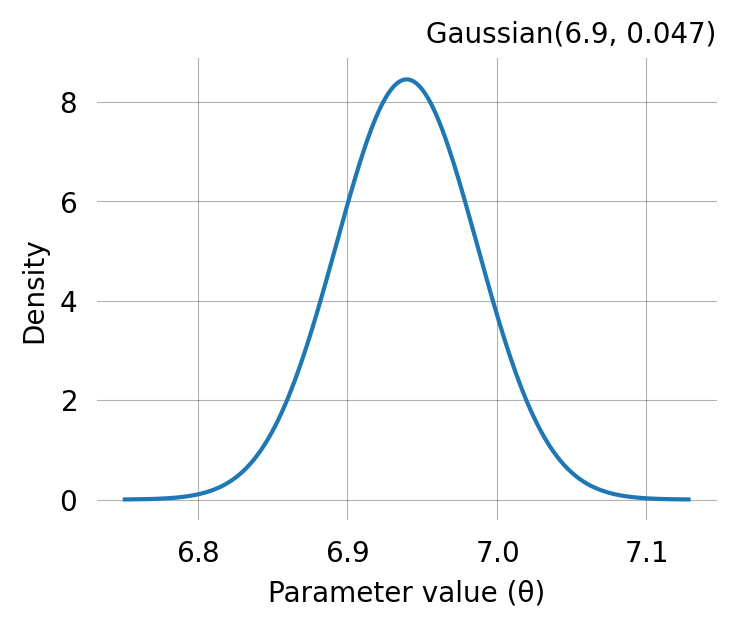

The prior distribution used in Bayesian inference represents our prior belief, I.e. our knowledge about what range of values the parameter can reasonably take. Phasic comes with two types of priors that are easily defined from basic knowledge about the parameter. The default behaviour of Phasic is to use a Gaussian prior centered on a rough estimate of each parameter using method-of-moments. To see the prior used, you can can plot it like this:

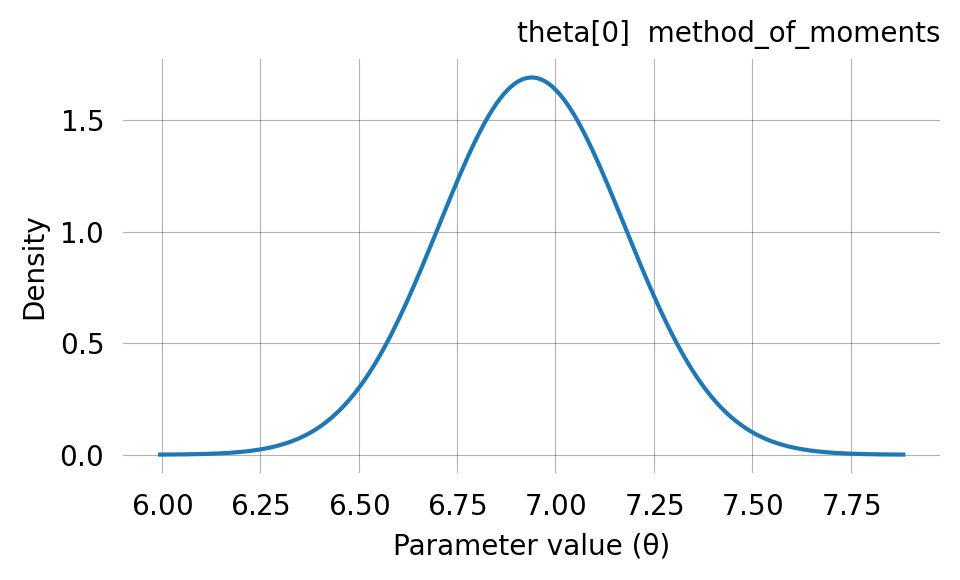

svgd.prior.plot() ;

or reconstruct the GaussPrior from its properties:

GaussPrior(mean=svgd.prior.theta.item(), std=svgd.prior.std.item()).plot() ;

You can define your own Gaussian prior (GaussPrior) or a Half-Cauchy prior (HalfCauchy).

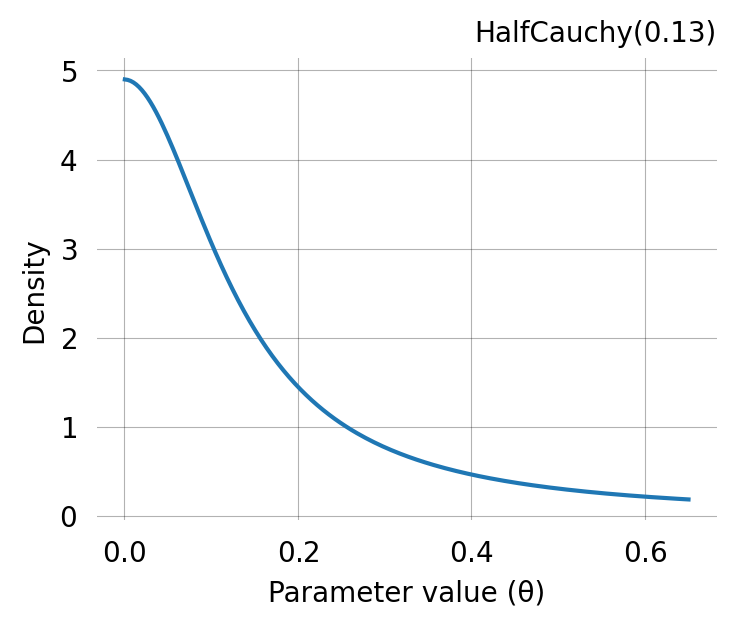

The Half-Cauchy can be defined by the scale parameter or the upper bound of of the CI.

prior = HalfCauchyPrior(ci=0.4, prob=0.8)
prior.plot();

The Gaussian can be defined by either mean and SD or a confidence interval:

# prior = Prior(mean=5, std=2)

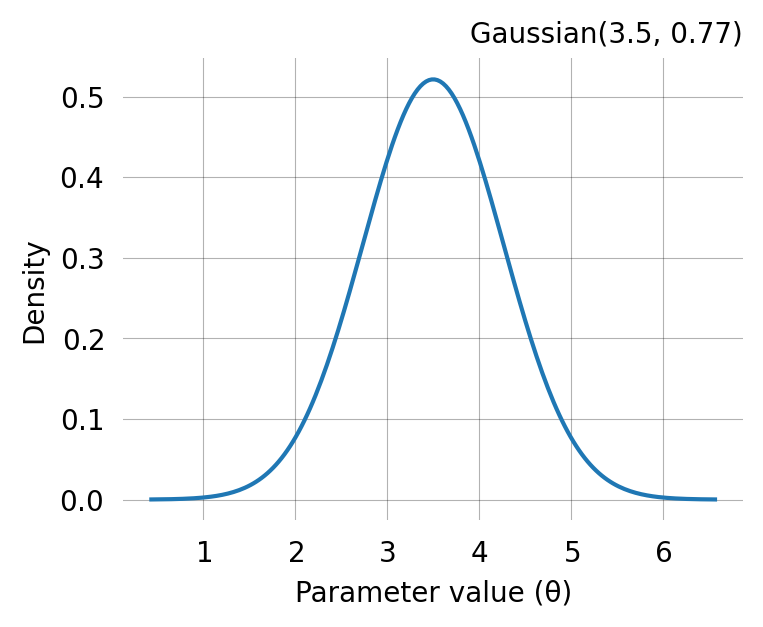

prior = GaussPrior(ci=[2, 5])
prior.plot();

Phasic also has a LogGaussPrior for stating prior belief in terms of “orders of magnitude”:

prior = LogGaussPrior(ci=[1e-7, 1e-2])
prior.plot();

prior = LogGaussPrior(mean=1e-3, std=2)
prior.plot();

Tip

The GaussPrior and HalfCauchyPrior classes provide the log-probabilities needed for SVGD. If you want to provide your own prior function, it must return such log-probabilities.

Lets add a prior to SVGD inference and rerun it.

step_schedule = ExpStepSize(first_step=0.002, last_step=0.0001, tau=80.0)
step_schedule.plot(nr_iter=500)

prior = GaussPrior(ci=[10, 20])
prior.plot();

prior = GaussPrior(ci=[10, 20])
step_schedule = ExpStepSize(first_step=0.002, last_step=0.0001, tau=80.0)
svgd = graph.svgd(observed_data,
                  learning_rate=step_schedule,
                  prior=prior,
                  n_iterations=100
                  )

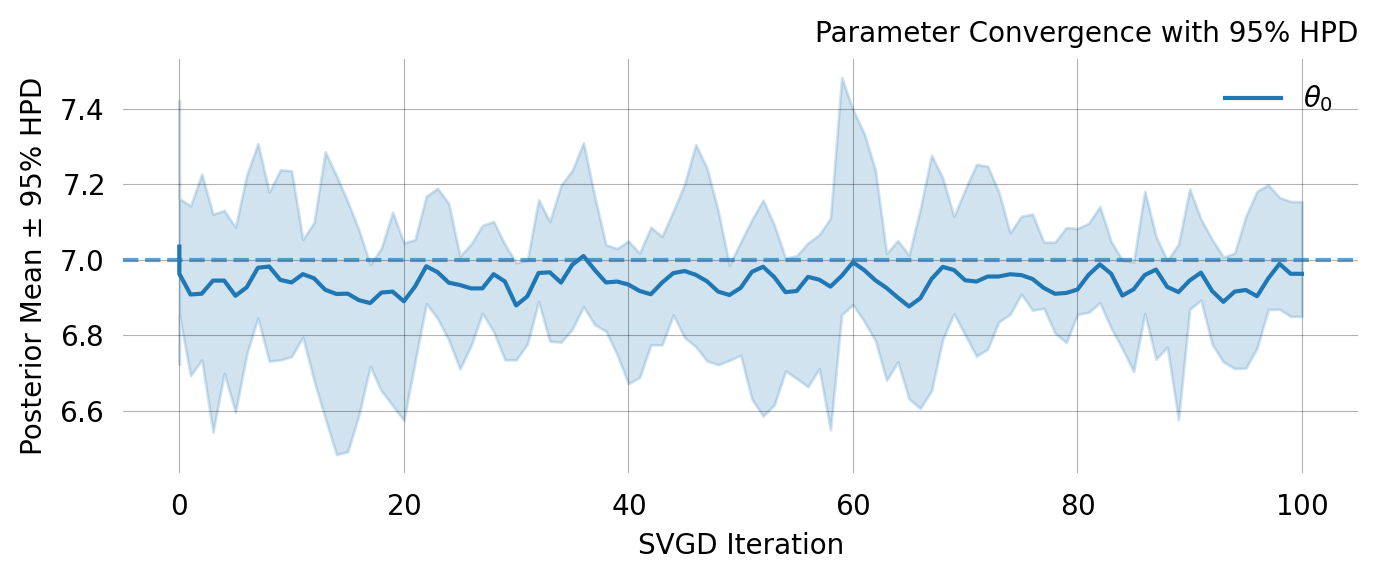

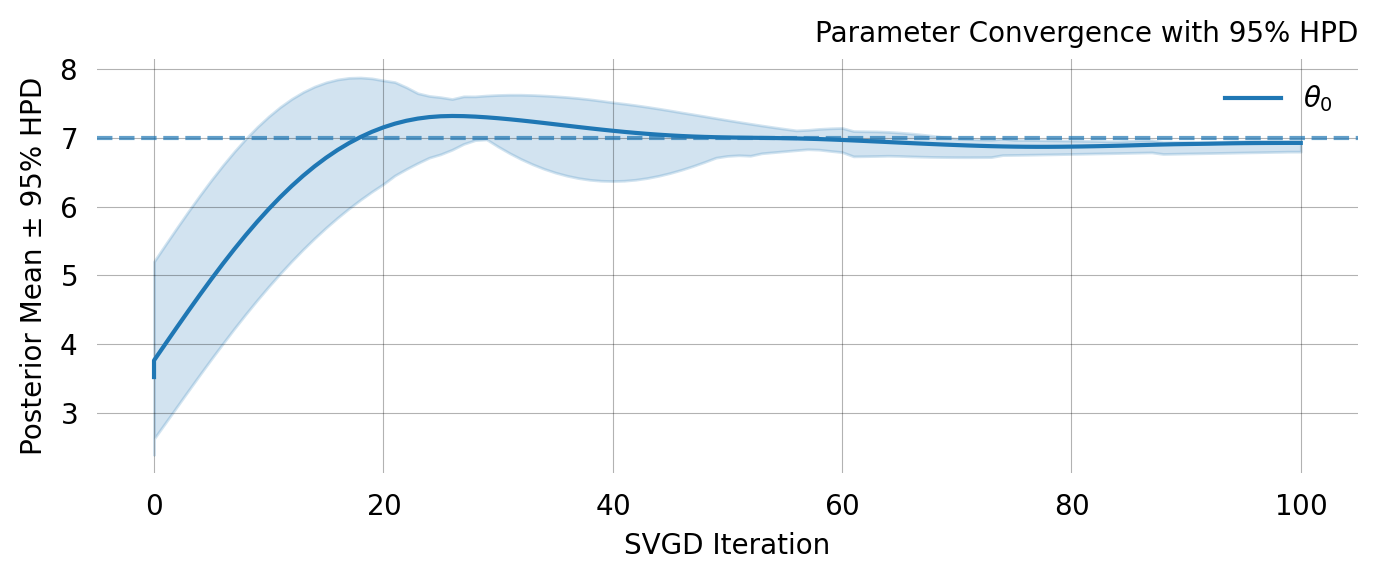

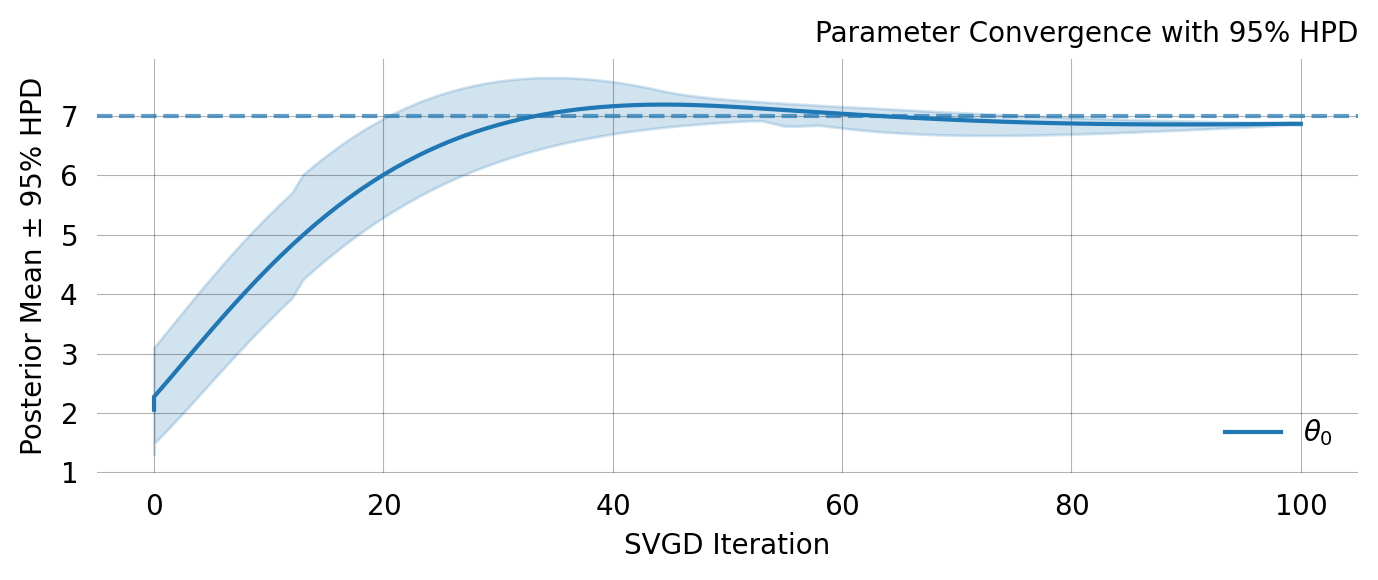

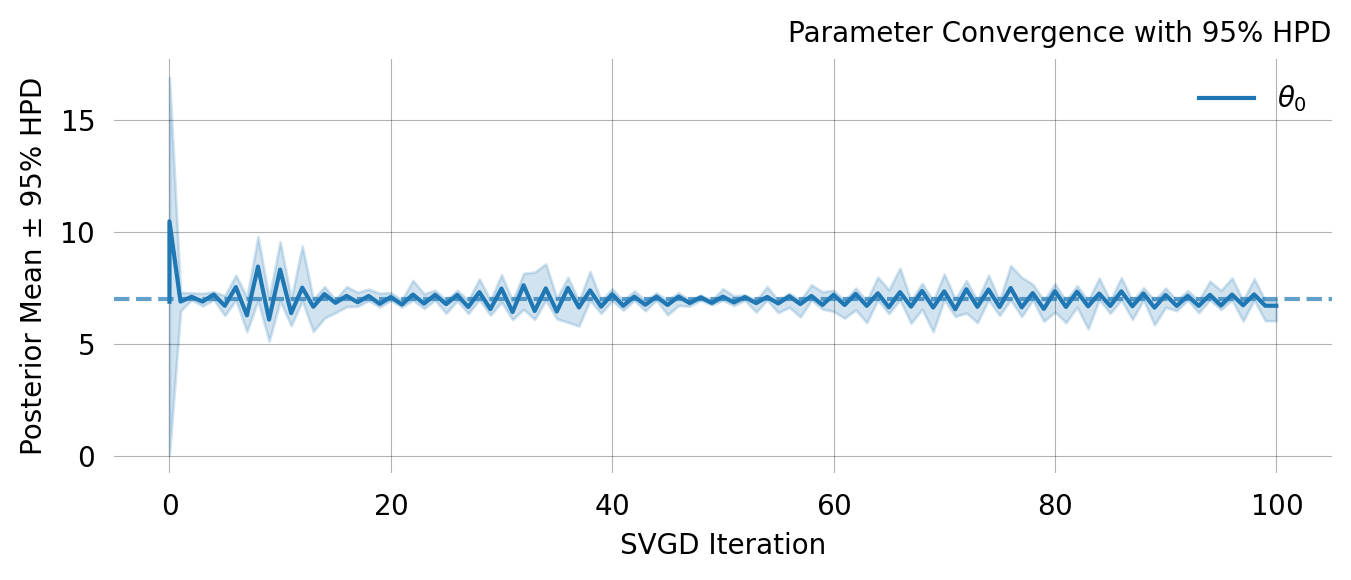

svgd.plot_ci(true_theta=true_theta)

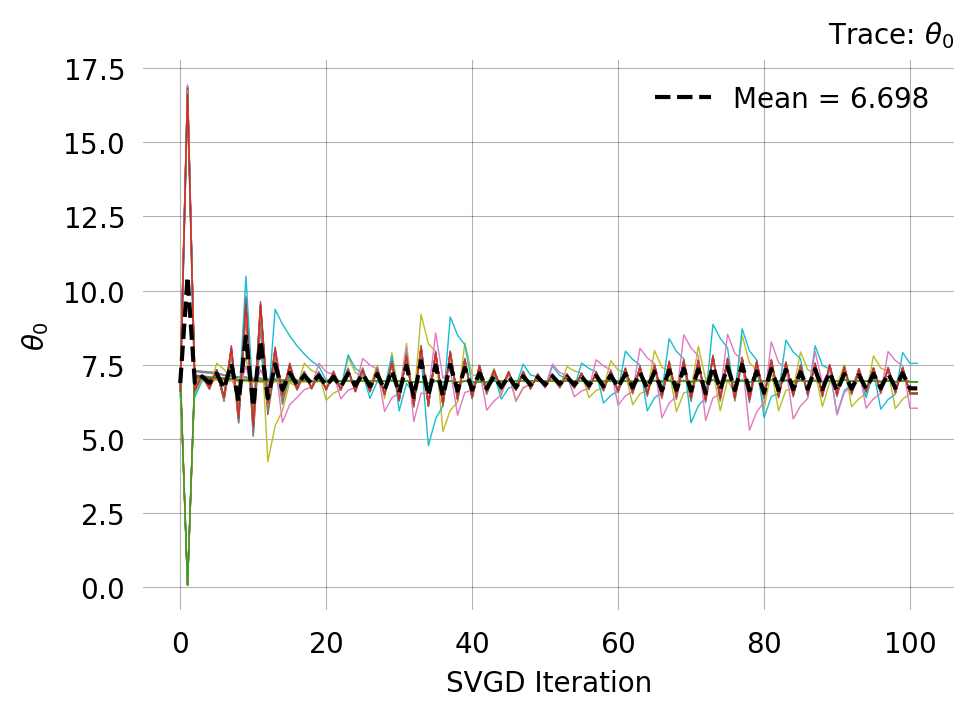

svgd.plot_trace(max_particles=100)


svgd.plot_ci(true_theta=true_theta, ci=0.5)

svgd = graph.svgd(observed_data,
                  learning_rate=step_schedule,
                  prior=GaussPrior(ci=[1, 5])
                  )
svgd.plot_ci(true_theta=true_theta, ci=0.5)

svgd = graph.svgd(observed_data,
                  learning_rate=step_schedule,
                  prior=GaussPrior(ci=[10, 20])
                  )

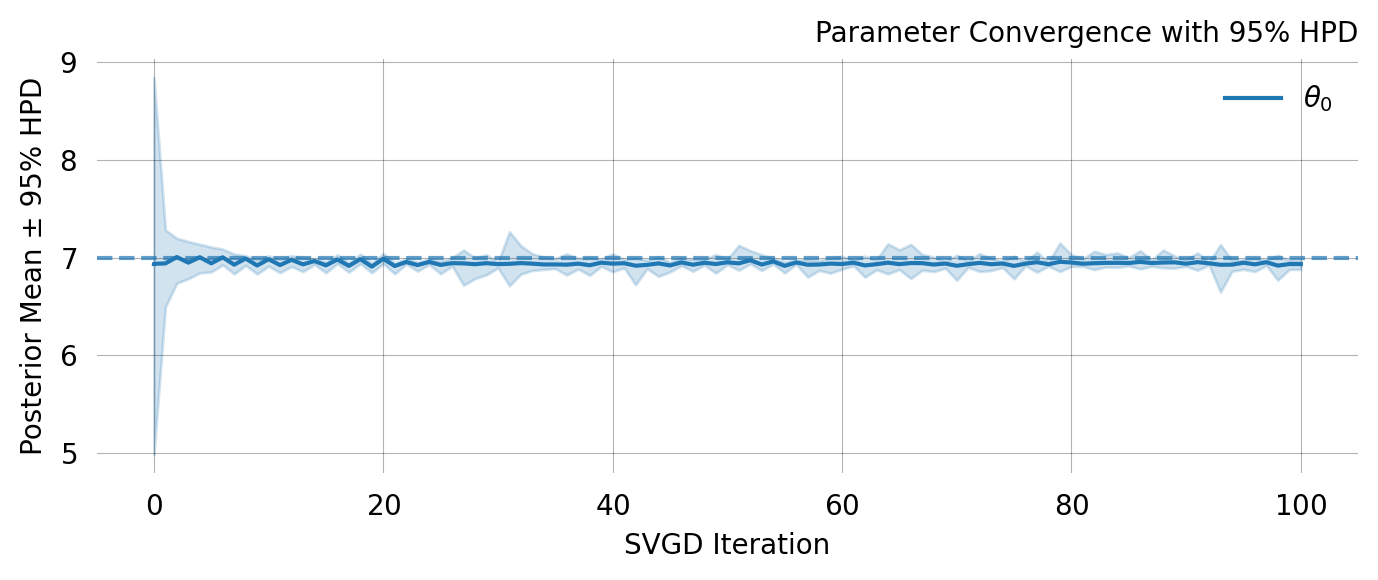

svgd.plot_ci(true_theta=true_theta, ci=0.5)

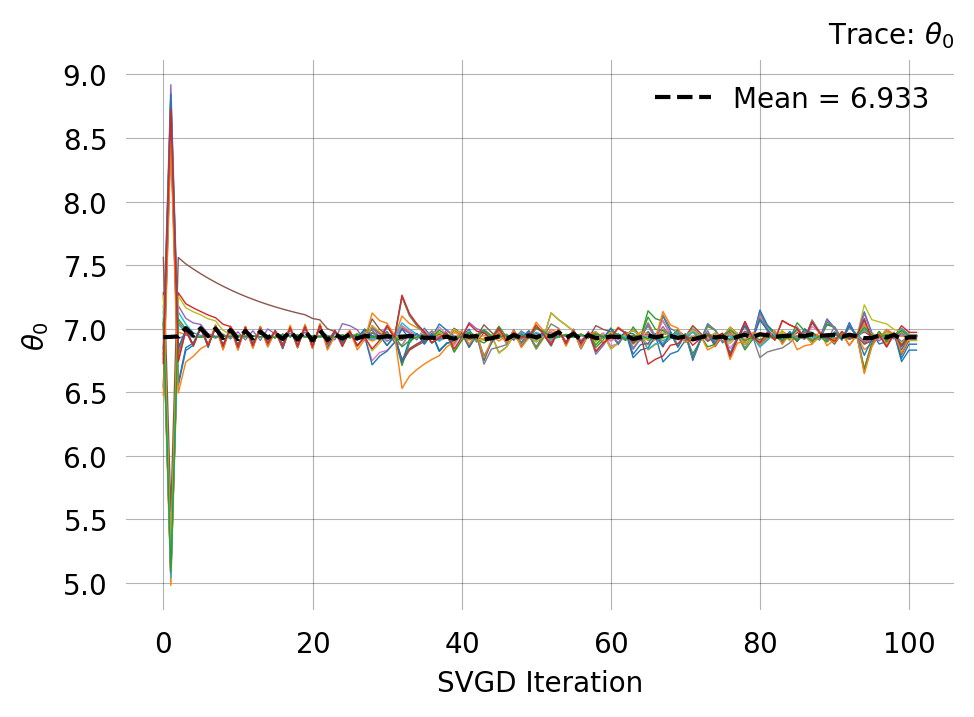

svgd.plot_trace(true_theta=true_theta, ci=0.5)

svgd.analyze_trace()

CONVERGED (iteration 50/1001)
  Mean stabilized at iteration 50
  Std stabilized at iteration 50

Detected Issues:
  ℹ Converged at 5% of iterations - could reduce n_iterations
Learning Rate: Converged efficiently
  current schedule is good
Particles: High ESS ratio (1) - could reduce particles
  Keep n_particles=20
Iterations: Converged early
  Could reduce to n_iterations=60

Moment regularization

We can also help optimization by applying moment regularization across iterations:

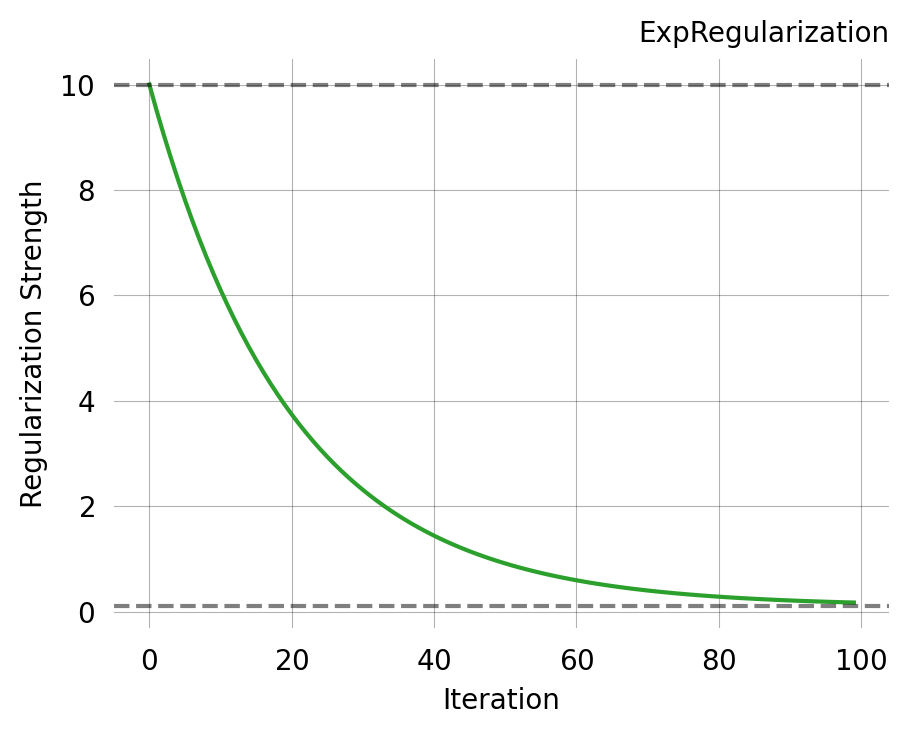

reg_schedule = ExpRegularization(first_reg=10.0, last_reg=0.1, tau=20.0)
reg_schedule.plot(100) ;

svgd = graph.svgd(observed_data,
                  prior=prior,
                  learning_rate=step_schedule,
                  regularization=reg_schedule,
                  nr_moments=2
                  )
svgd.plot_ci(true_theta=true_theta)

[WARNING] phasic.svgd: svgd_step: clipped 1/20 particle gradient norm(s) exceeding 10000x the healthy batch median (a loss singularity or a diverging particle was encountered) -- inference for those particles is damped, not exact, for this step.

---------------------------------------------------------------------------
